HYDRAULIC CIRCUITRY Front Distributor

Запчасти Bobcat BL570 HYDRAULIC CIRCUITRY Front Distributor HYDRAULIC SYSTEM

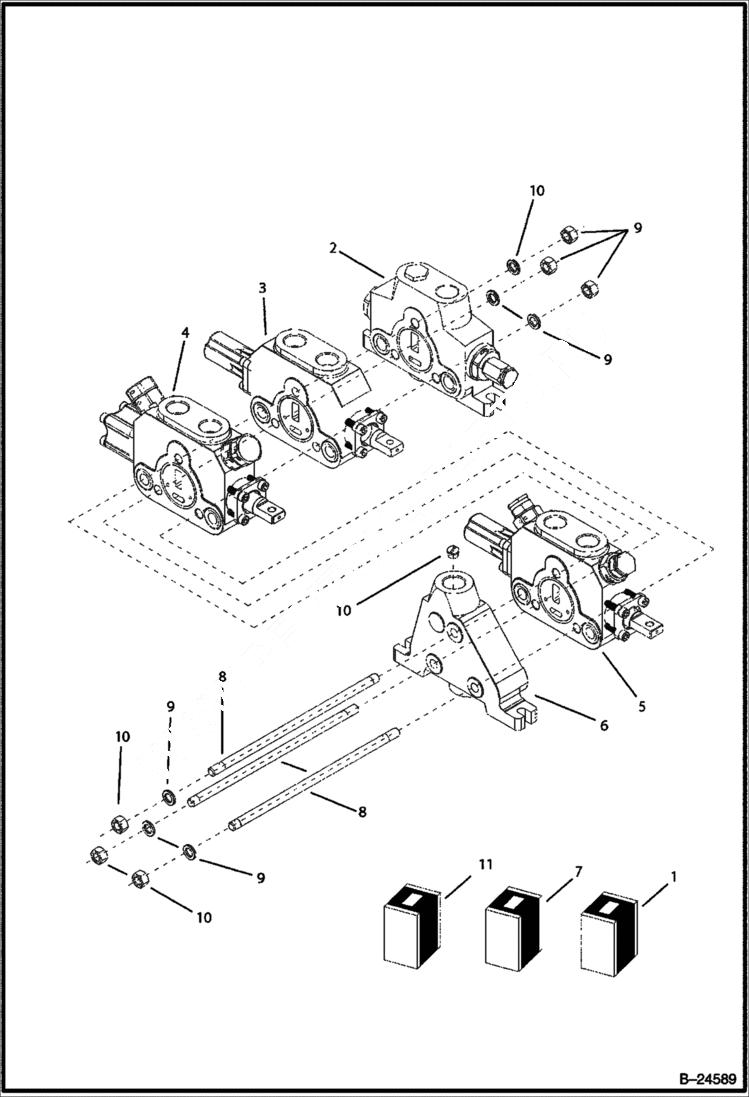

Схема запчастей Bobcat BL570 - HYDRAULIC CIRCUITRY Front Distributor HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6974601

DISTRIBUTOR front - Ref. 2-6, 8-10

2

6969509

SECTION

3

6969510

SECTION

4

6969511

SECTION

5

6969512

SECTION

6

6969513

OUTLET SECTION

7

6969514

KIT Ref. 8-10

8

BOLT NLA

9

WASHER NLA

10

NUT NLA

11

6969508

SEAL KIT For all distributor
