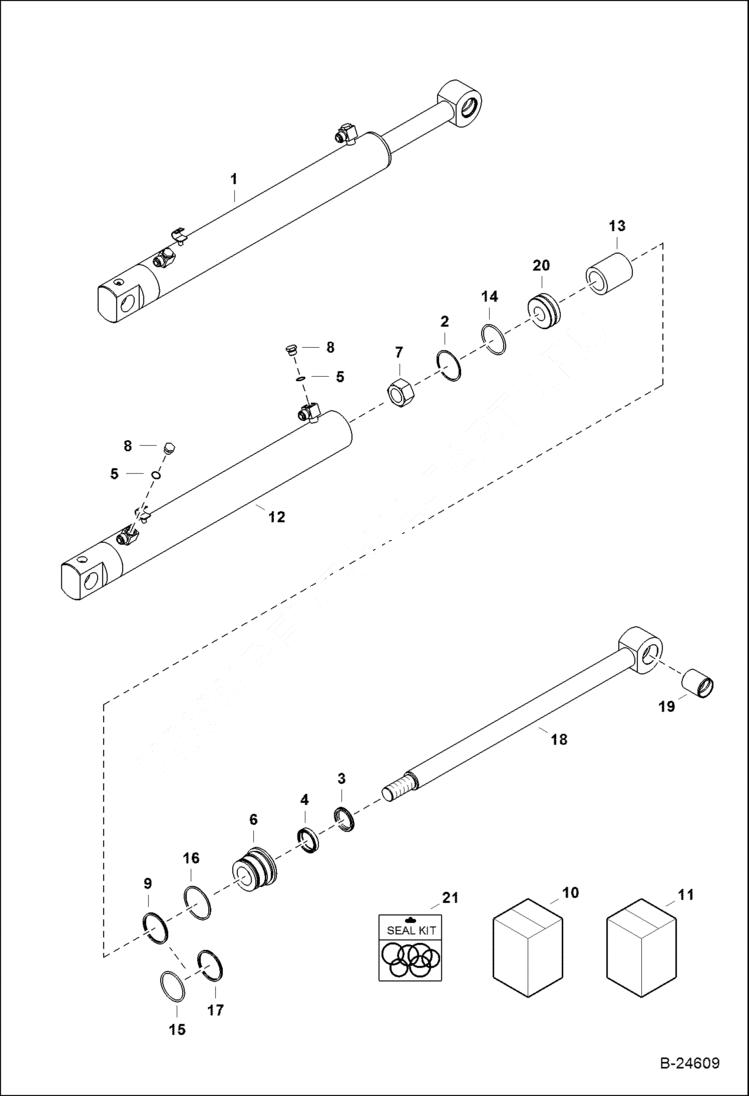

Запчасти Bobcat BL570 TILT CYLINDER HYDRAULIC SYSTEM

1

6815266

CYLINDER Ref. 2-8 & 12-20

2

6516229

PISTON SEAL

3

6690707

WIPER, ROD CYL Was 6665086 - A

4

6667326

SEAL

5

75K6

O-RING

6

6586718

HEAD, CYL TILT

7

6810539

NUT

8

6812171

PLUG

9

7008356

SEAL, QUAD

10

6678932

PISTON Ref. 2, 14 & 20

11

6815267

SHAFT Ref. 18 & 19

12

6815270

TUBE

13

6815268

SPACER

14

25K30210

O-RING Was 54K30210 - B

15

25K60212

O RING 10 Was 54K60212 - B

16

25K40224

O RING 10 Was 54K40224 - B

17

73K332

RING

18

SHAFT NLA

19

6804139

BUSHING

20

PISTON NLA

21

7137939

KIT, SEAL Ref. 2-4, 7, 9, 14, & 16 - Was 6816536 - A
