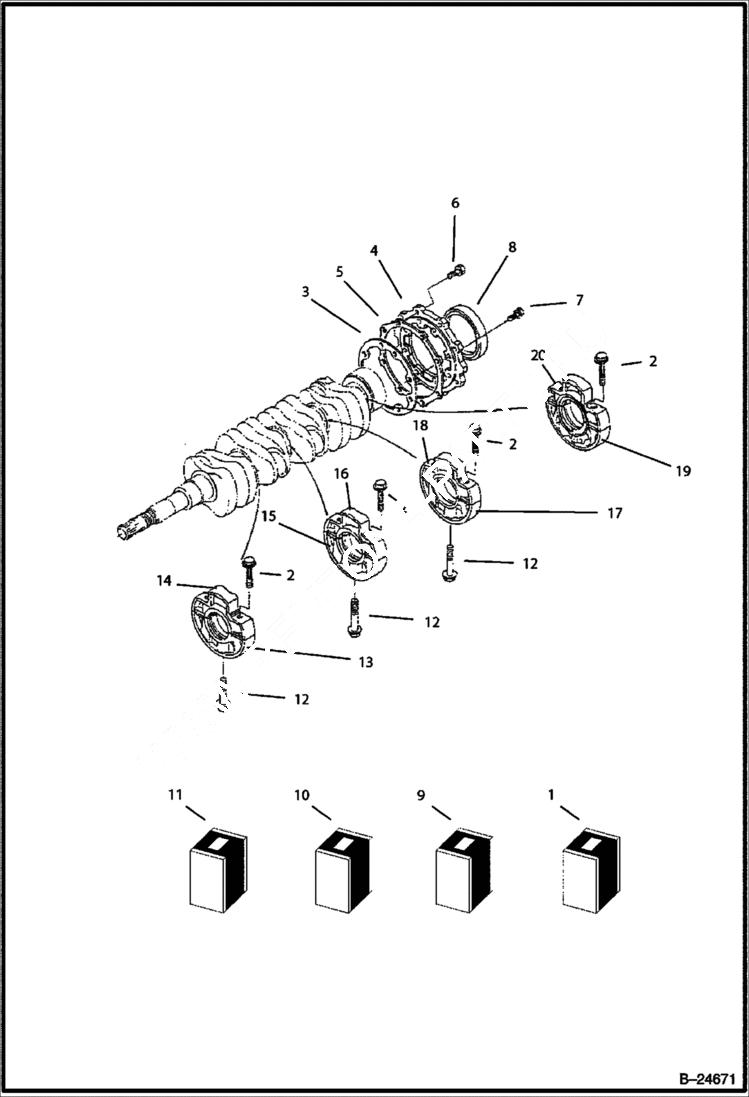

Запчасти Bobcat BL570 MAIN BEARING CASE POWER UNIT

1

6682504

BEARING Ref. 19 & 20

2

6655164

BOLT

3

6684788

GASKET Was 6667427 - A

4

6655166

COVER

5

6682505

GASKET

6

1CM825

BOLT Was 4CM825 - A

7

4CM828

BOLT

8

6684789

SEAL oil - Was 6649300 - A

9

6682506

BEARING assy - case - Ref. 13 & 14

10

6682504

BEARING assy - case - Ref. 15 & 16

11

6675634

CASE assy - case - Ref. 17 & 18

12

6653821

BOLT

13

CASE, BEARING NLA

14

CASE, BEARING NLA

15

CASE, BEARING NLA

16

CASE, BEARING NLA

17

CASE, BEARING NLA

18

CASE, BEARING NLA

19

CASE, BEARING NLA

20

CASE, BEARING NLA
