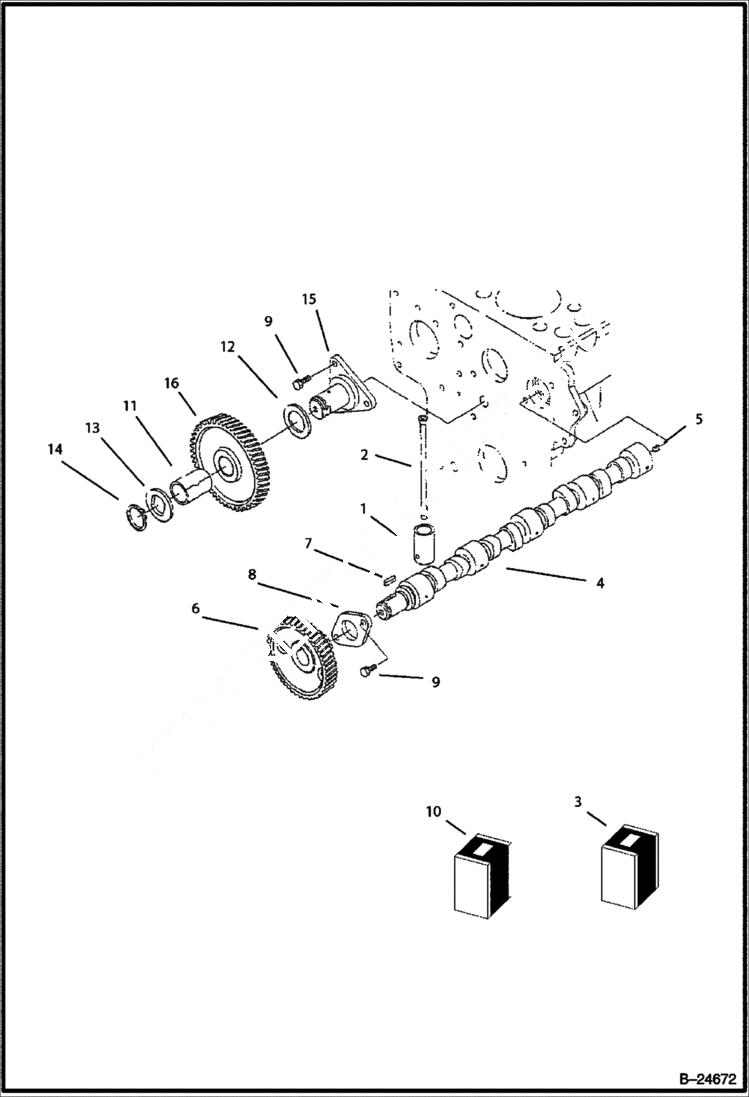

Запчасти Bobcat BL570 MAIN BEARING CASE POWER UNIT

1

7015269

TAPPET Was 6667428 - A

2

6655176

PUSHROD

3

6675645

CAMSHAFT assy - Ref. 4-8

4

6675646

CAMSHAFT

5

6653839

SCREW

6

6653840

GEAR

7

3974546

KEY feather

8

6653843

STOPPER

9

1CM818

BOLT Was 4CM818 - A

10

GEAR ASSY. NLA - idle - Ref. 11 & 16 - Was 6655187 - A

11

6655242

BUSHING

12

6655190

COLLAR

13

6655191

COLLAR

14

6655192

CIR-CLIP

15

6655193

SHAFT idle gear

16

GEAR, IDLE NLA
