CARBURETOR

Запчасти Bobcat 300s CARBURETOR POWER UNIT

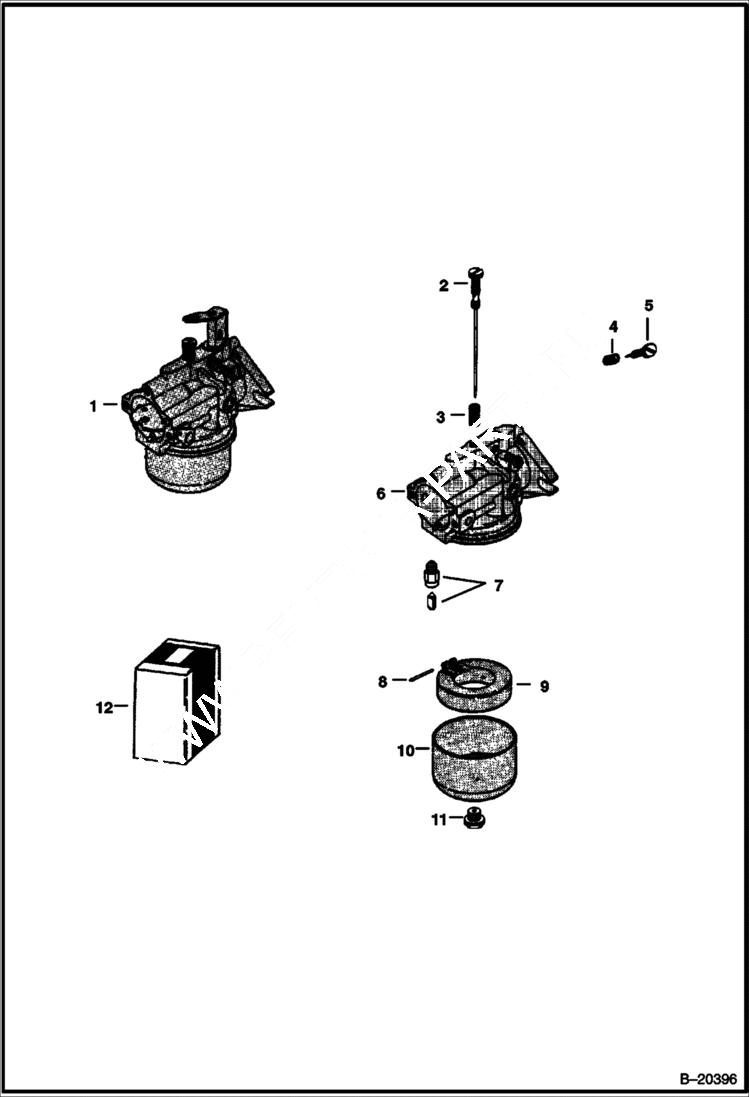

Схема запчастей Bobcat 300s - CARBURETOR POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6661414

CARBURETOR Adjustable - Ref. 2-11 - W/Gasket - Was 6513236 - A

2

6513237

NEEDLE Fuel Adjusting

3

6518934

SPRING

4

6518933

SPRING

5

6518940

NEEDLE Idle

6

HOUSING NLA

7

NEEDLE NSS - W/Seat

8

PIN NSS

9

6518935

FLOAT

10

BOWL NLA

11

6518938

NUT W/Gasket

12

6512226

KIT Repair - Ref. 7 & 8 - Plus Gaskets
