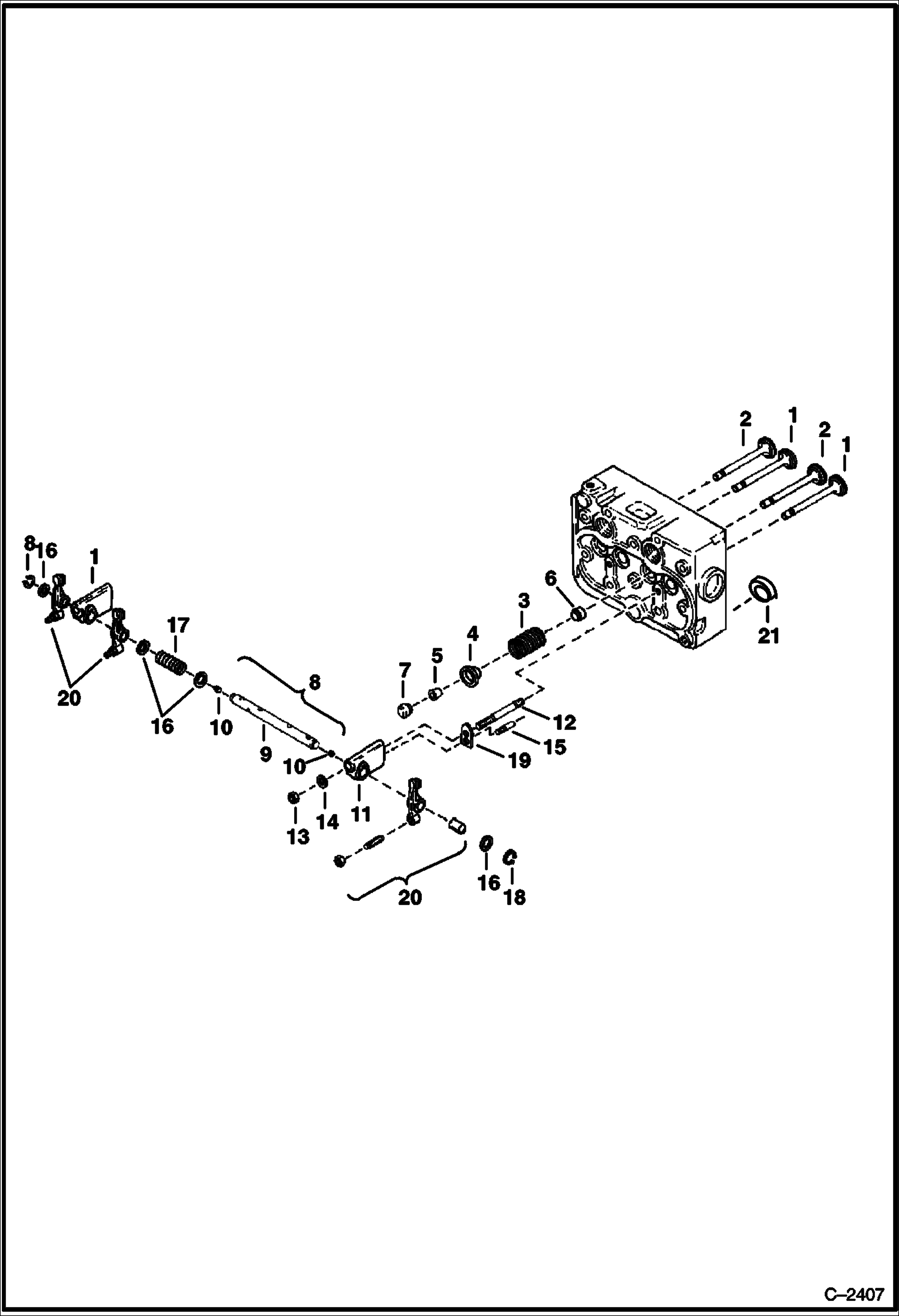

Запчасти Bobcat 300s ROCKER ARM POWER UNIT

1

6599009

VALVE intake - Was 3974157B - A

2

6599010

VALVE exhaust - Was 3974158B - A

3

3974159

SPRING

4

6685959

RETAINER Was 6652616 - A

5

7008389

RETAINER, VALVE SPRING retainer - Was 3974161 - A

6

3974162

SEAL

7

6672437

CAP Valve - Was 3974163 - A

8

3974164

SHAFT Rocker arm

9

SHAFT NSS

10

SET SCREW NSS

11

6599986

BRACKET Was 3974167B - A

12

3974168

STUD

13

1DM7

NUT

14

2EM7

WASHER

15

3974171

SCREW

16

3974172

WASHER

17

3974173

SPRING Rocker arm

18

5JM10

RING

19

3974175

GUIDE oil

20

ARM NLA - Rocker assy - Was 6653573 - A

21

6667480

CHAMBER combustion - Was 6630370 - A
