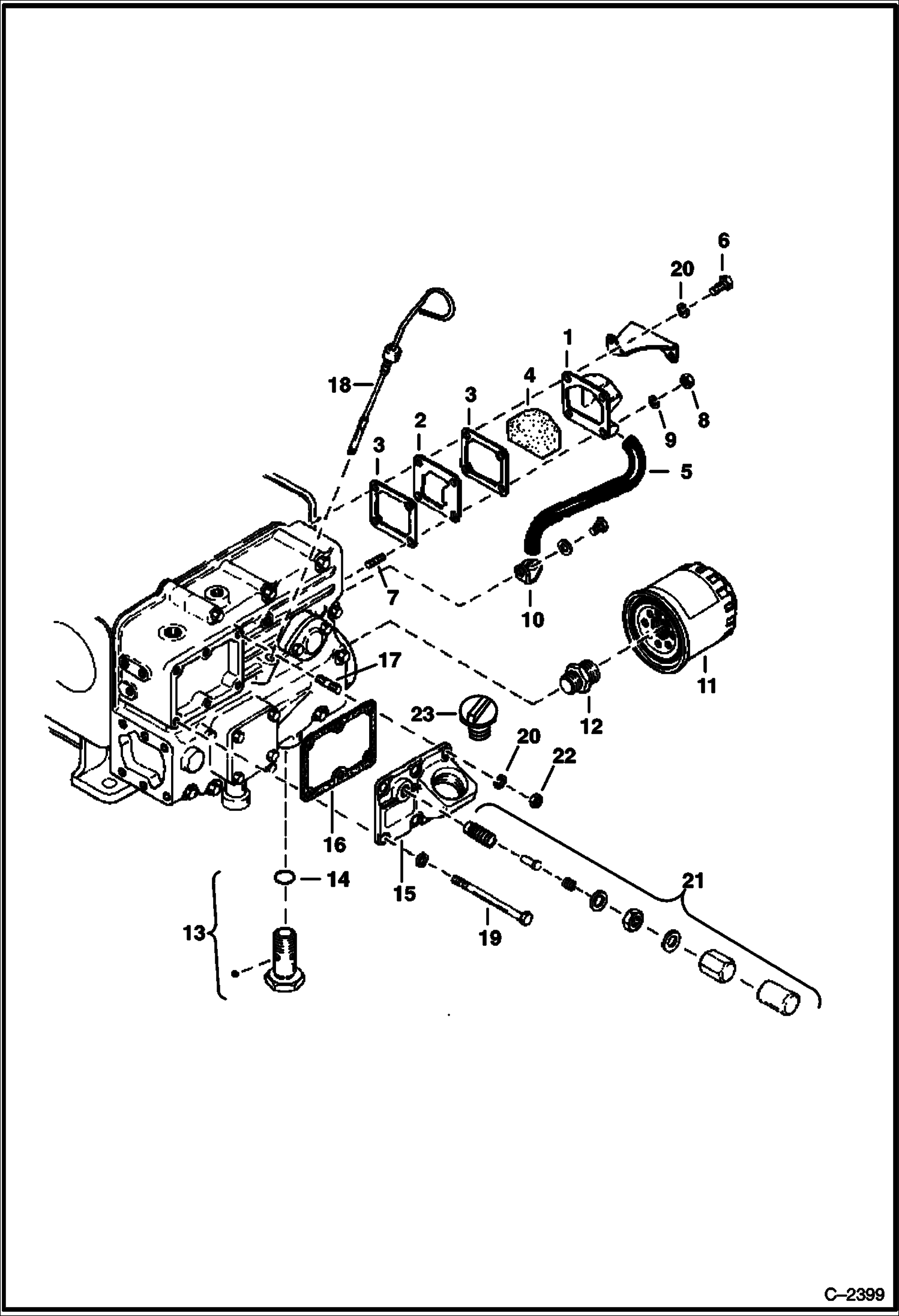

Запчасти Bobcat 300s BREATHER & OIL FILTER POWER UNIT

1

3974106

COVER

2

3974107

BREATHER

3

6666769

GASKET Was 3974108B - A

4

ELEMENT NLA - Was 3974109 - A

5

3974110

PIPE breather

6

1CM616

SCREW Was 4CM616 - A

7

3974085

STUD

8

25DM6

NUT

9

6EM60

WASHER, SPRING

10

3974112

CLAMP

11

3974113

FILTER, OIL ENG 12 oil filter

12

6652597

ADAPTER Was 3974114B - A

13

6652651

RELIEF VALVE Was 3974115B - A

14

3966715

O RING

15

3974117

SUPPORT

16

6666825

GASKET Was 3974118B - A

17

3974119

STUD

18

3974121

GAUGE

19

BOLT NLA - Was 4CM00690B - A

20

6EM60

WASHER, SPRING

21

ASSEMBLY NSS

22

25DM6

NUT

23

6685924

CAP oil filler - Was 6652653 - A
