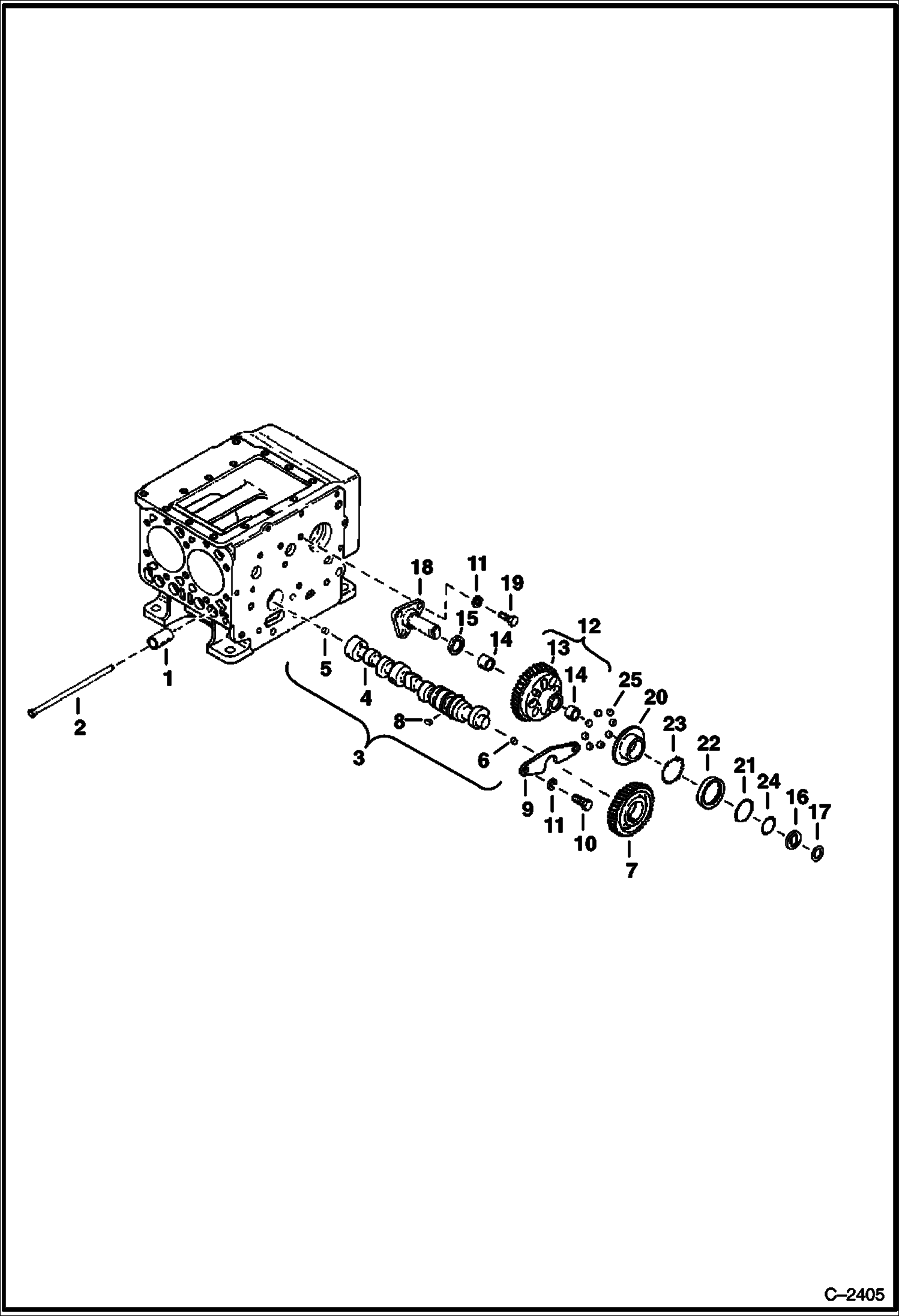

Запчасти Bobcat 300s CAMSHAFT GROUP POWER UNIT

1

3974193

TAPPET

2

3974194

ROD

3

3974195

CAM Ref. 4-6 & 8

4

CAMSHAFT NSS

5

PLUG NSS

6

PLUG NSS

7

3974199

GEAR camshaft

8

3974200

KEY

9

3974201

STOPPER

10

1CM818

BOLT Was 4CM818 - A

11

6EM80

WASHER, SPRING

12

3974202

GEAR idler assembly - Ref. 13 & 14

13

GEAR NSS

14

BUSHING NSS

15

3974205

COLLAR

16

3974206

COLLAR

17

3974207

SNAP RING

18

3974208

SHAFT

19

1CM820

BOLT Was 4CM820 - A

20

3974209

SLEEVE

21

3974210

RING

22

3974211

CASE ball

23

6969817

BALL Was 10J5 - A

24

3974212

RING

25

10J17

BALL Was NSS - D
