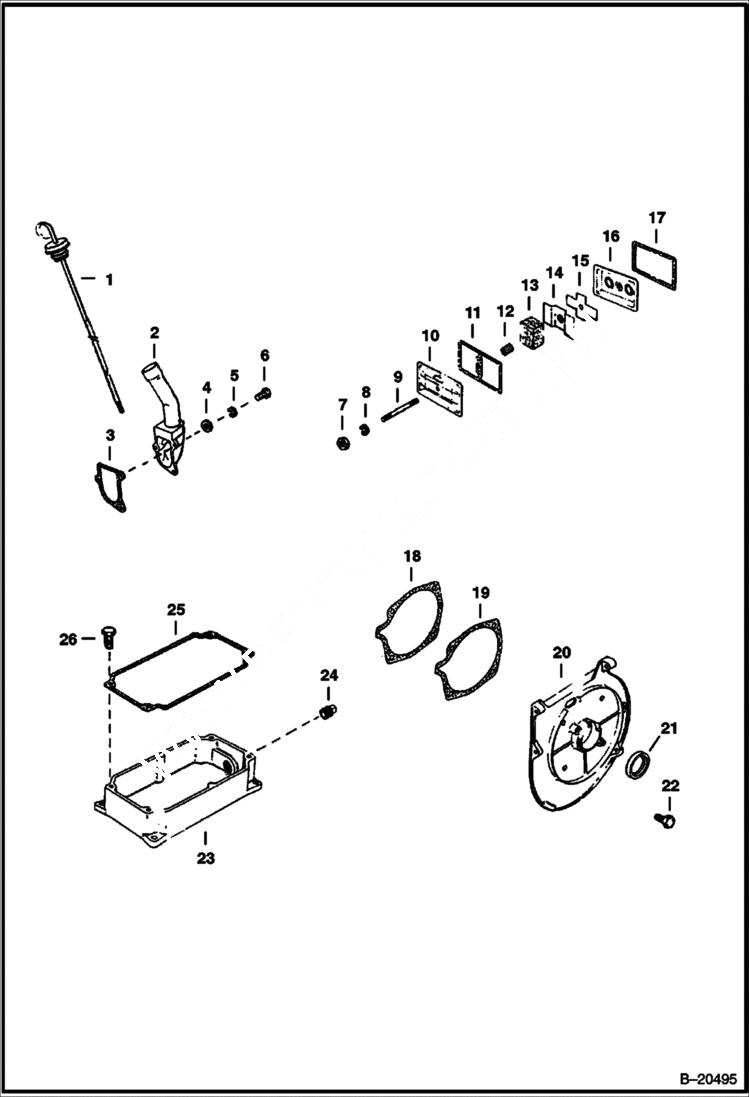

Запчасти Bobcat 300s GEAR COVER & OIL BASE GROUP POWER UNIT

1

6518845

OIL DIPSTICK

2

6518844

TUBE oil fill

3

6518842

GASKET

4

6518102

WASHER

5

15E10

WASHER

6

SCREW NLA - socket head - Was 85G001007B - A

7

61D4

NUT 5

8

4E4

WASHER

9

6518915

STUD breather

10

6518865

VALVE COVER

11

6518888

GASKET valve cover

12

6518874

SEAL breather

13

6518896

FILTER breather

14

6518895

BAFFLE breather

15

6518887

REED breather

16

6518908

PLATE breather

17

6518970

GASKET breather

18

6518891

GASKET gear cover plate

19

6518912

GASKET bearing plate

20

6513238

COVER bearing

21

6518956

SEAL front oil

22

17C616

BOLT 5

23

6518894

BASE oil pan

24

40K12

PLUG Was 13F-12 - A

25

6518890

GASKET oil pan

26

BOLT NLA - Was 5C000616B - A
