HOURMETER KIT

Запчасти Bobcat 400s HOURMETER KIT ACCESSORIES & OPTIONS

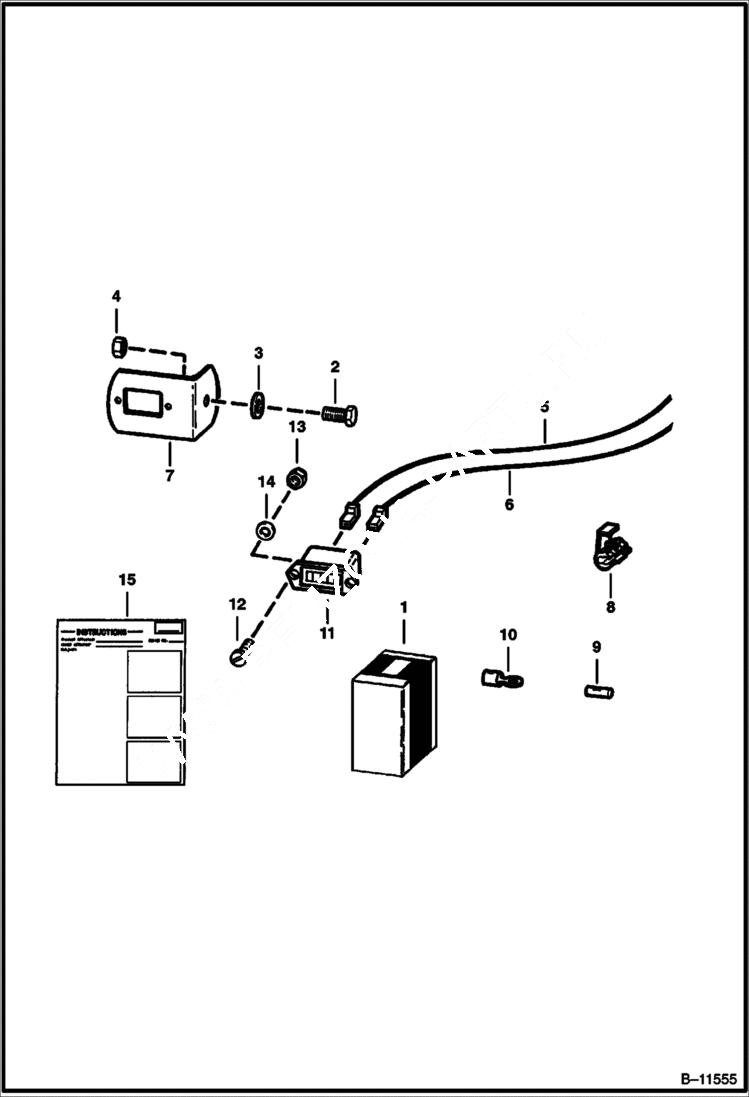

Схема запчастей Bobcat 400s - HOURMETER KIT ACCESSORIES & OPTIONS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6530731

KIT Ref. 2-15

2

17C616

BOLT 5

3

25E17

WASHER 5

4

61D6

NUT 5

5

6565382

WIRE

6

6565642

WIRE

7

6552906

BRACKET

8

6513275

CONNECTOR

9

637641

SLEEVE

10

614137

TERM 1

11

6664886

HOURMETER Was 6631657 - A

12

85G608

SCREW

13

12D6

NUT 10 Was 61D000004B - B

14

12E6

WASHER

15

6570487

INSTRUCTIONS
