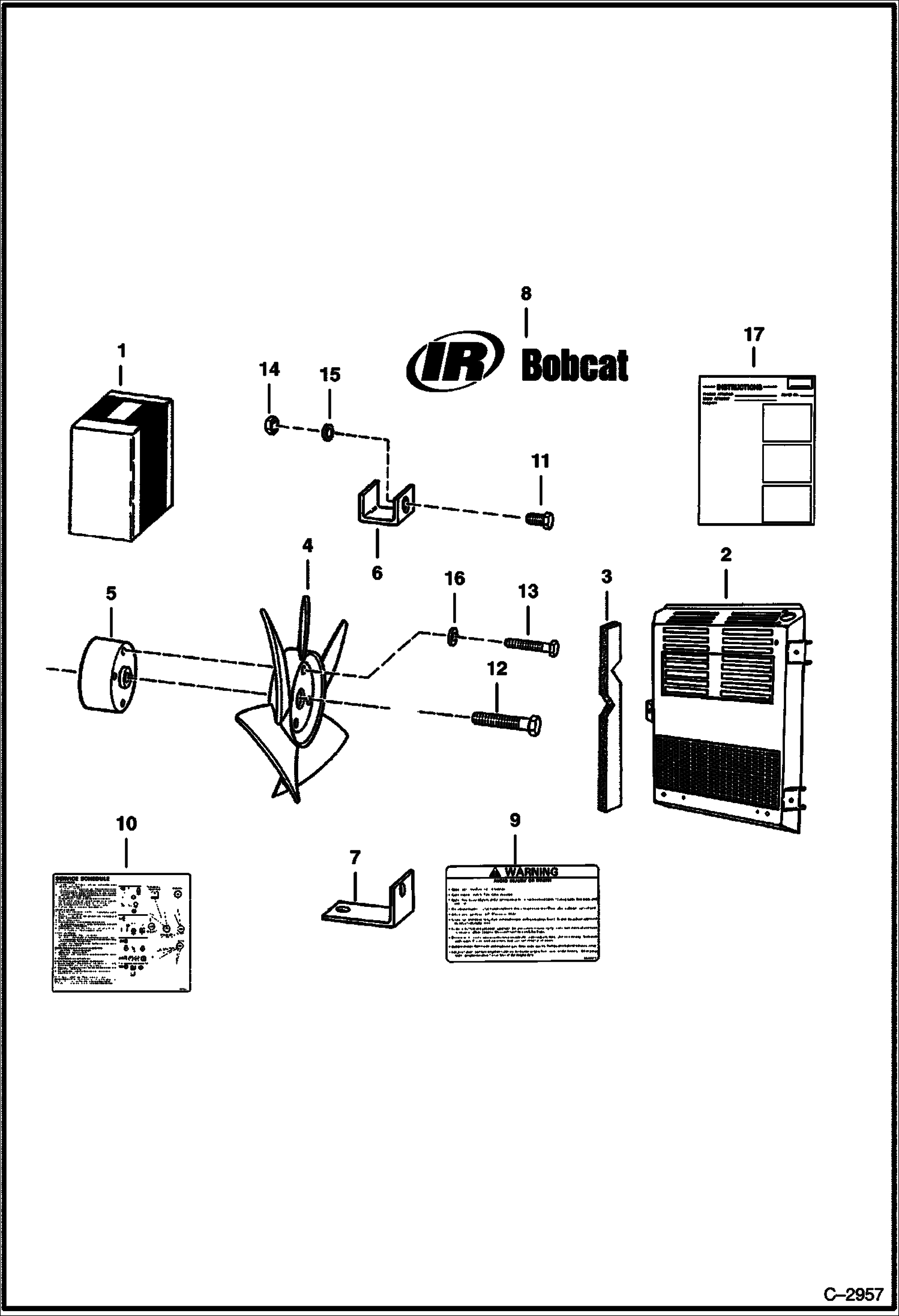

Запчасти Bobcat 400s ENGINE COOLING KIT ACCESSORIES & OPTIONS

1

KIT NLA - Ref. 2-17 - Was 6593970 - A

2

6593975

REAR DOOR

3

6564269

INSULATION

4

FAN NLA - Was 6631968 - A

5

SPACER NLA - Was 6593980 - A

6

6593979

BRACKET

7

6593978

BRACKET

8

DECAL NLA - Bobcat Logo - Was 6727307 - A

9

6579511

DECAL warning - Was 6565980 - A

10

6567875

DECAL service

11

17C612

BOLT 5

12

18C740

BOLT

13

45G1012

SCREW

14

61D6

NUT 5

15

4E6

WASHER

16

25E10

WASHER

17

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6570133 - A
