OIL PAN (S/N 522211001 & Above, 522111001 & Above)

Запчасти Bobcat 400s OIL PAN (S/N 522211001 & Above, 522111001 & Above) POWER UNIT

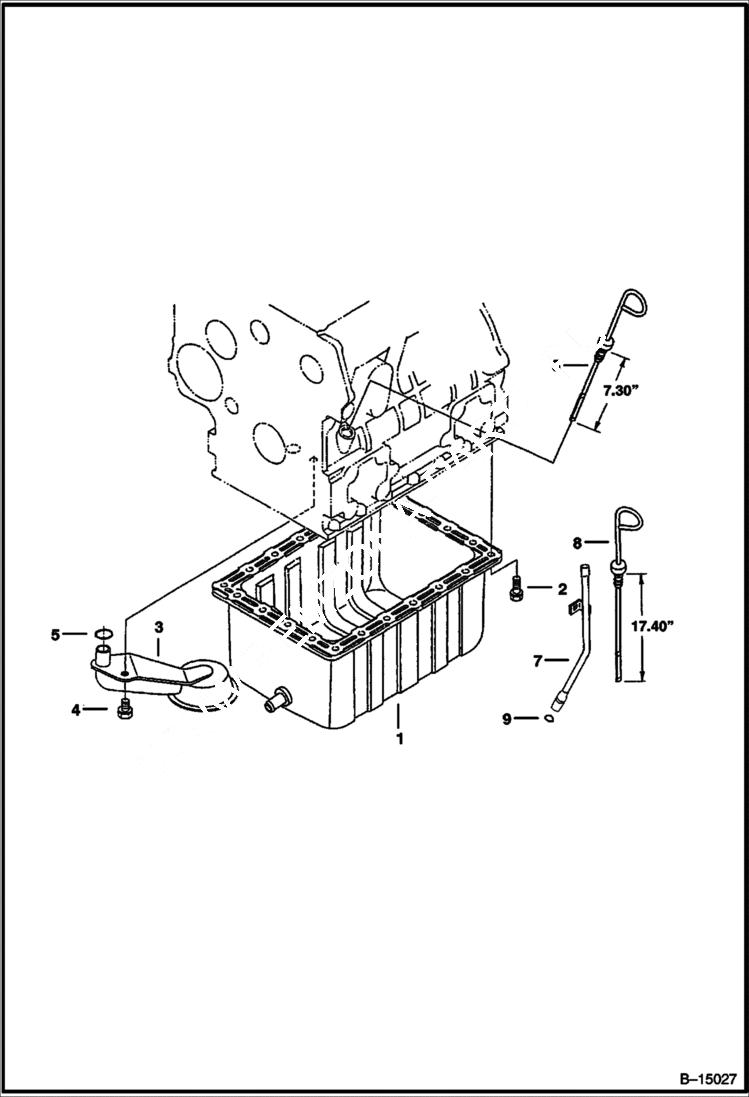

Схема запчастей Bobcat 400s - OIL PAN (S/N 522211001 & Above, 522111001 & Above) POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6672356

OIL PAN

2

1CM612

BOLT Was 4CM612 - A

3

6657547

SCREEN

4

6667421

BOLT

5

3966516

O RING

6

6672480

DIPSTICK 7.30''(185.4mm) long

7

6672745

TUBE Use W/Ref. 8

8

6672746

DIPSTICK 17.40''(442.0mm) long - Use W/Ref. 7

9

6673314

O-RING
