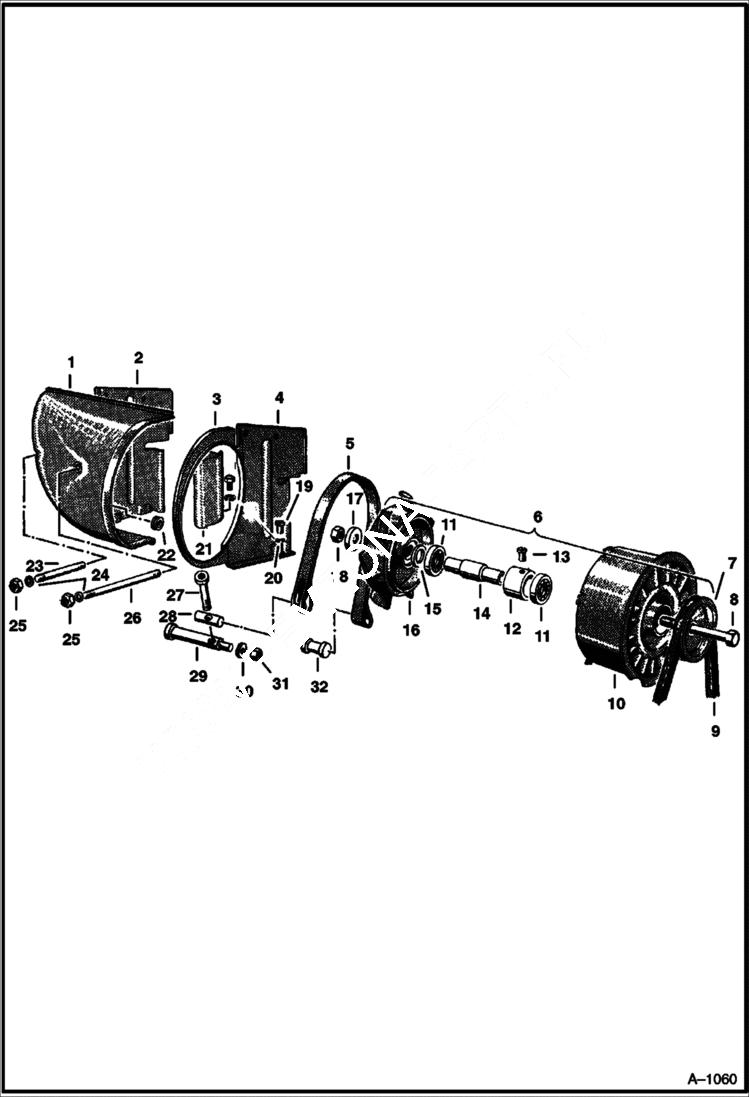

Запчасти Bobcat 500s AIR BLOWER & AIR SHROUD F2L310 Deutz Diesel POWER UNIT

1

6517809

SHIELD blower side

2

6517808

SHIELD blower rear

3

1CM610

BOLT Was 4CM610 - A

4

6517807

SHIELD blower front

5

6517804

BAND blower

6

6517801

BLOWER ASSY. Ref. 7, 8 & 10 - 16

7

6517802

PULLEY blower

8

6518177

SCREW blower

9

6517703

BELT blower

10

DEFUSER NSS - blower

11

6518373

BEARING blower

12

6517806

SPACER blower

13

1GM612

SCREW blower

14

6517799

SHAFT blower

15

6517800

SPACER blower

16

6518172

FAN blower

17

6517776

WASHER spacer blower

18

6517885

NUT blower

19

13GM6010

SCREW airshield

20

6EM60

WASHER, SPRING lock airshield

21

6517810

SHIELD blower

22

6518140

GROMMET

23

6517834

STUD airshield

24

1EM60

WASHER airshield

25

NUT Was 13DM6 - A

26

6515926

STUD airshield

27

SCREW NLA - allen head - Was 1GM000860B - A

28

6518176

CROSSBOLT

29

6517803

SCREW blower

30

6516157

WASHER flat blower

31

1DM8

NUT blower

32

6517805

PIN blower
