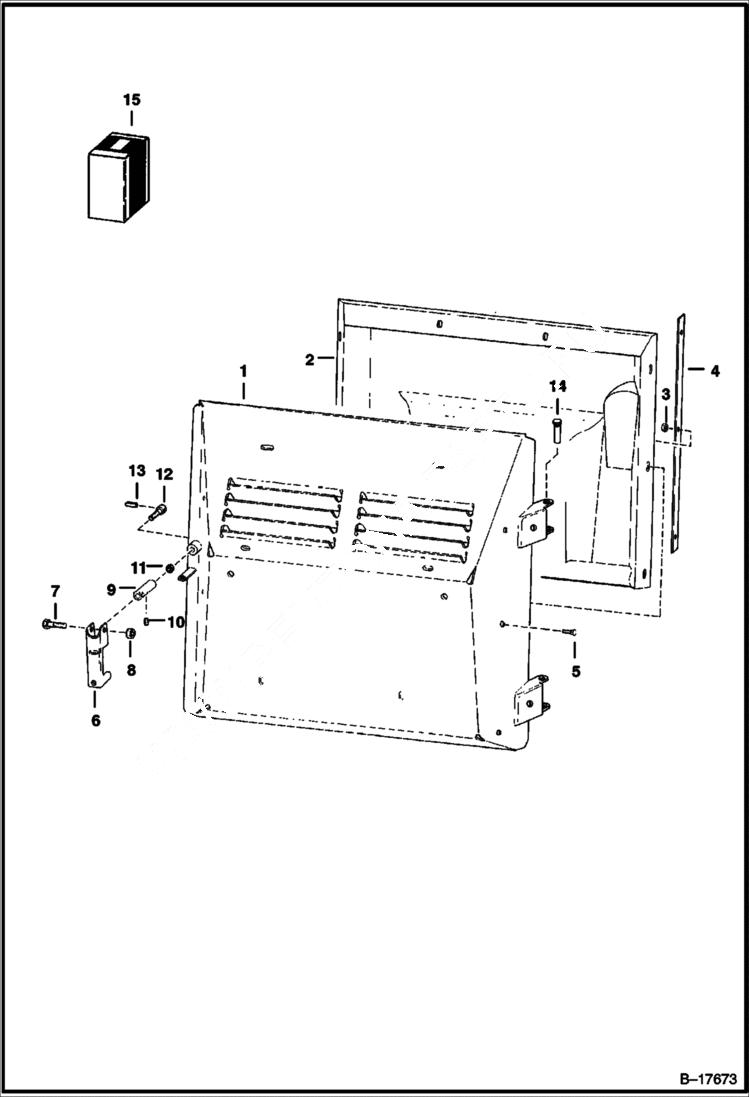

Запчасти Bobcat 500s REAR DOOR MAIN FRAME

1

REAR DOOR NLA - Order 6707690 Door, 6660646 Plug, (2) of 6707725 Cover, & (4) each of 17C000412B Bolt, & 55D000004B Nut - Was 6578827 - A

2

SHROUD NLA - Was 6564543 - A

3

85D6

NUT, 5

4

6553430

STRIP

5

37C616

BOLT carriage - Was 6514537 - A

6

6563681

HANDLE

7

38C624

BOLT 5 Was 6564599 - A

8

85D5

NUT 5

9

NUT NLA - coarse threads - Order 6565627 Nut, 6565628 Nut & 6565629 Screw

9

6565628

NUT fine threads

10

33G404

SET SCRW5

11

6563624

NUT coarse threads

11

6565627

NUT fine threads

12

SCREW NLA - coarse threads - Order 6565627 Nut, 6565628 Nut & 6565629 Screw

12

6565629

SCREW fine threads

13

6599361

PIN

14

6564340

PIN

15

6579448

LATCH KIT latch - W/Ref. 6-13
