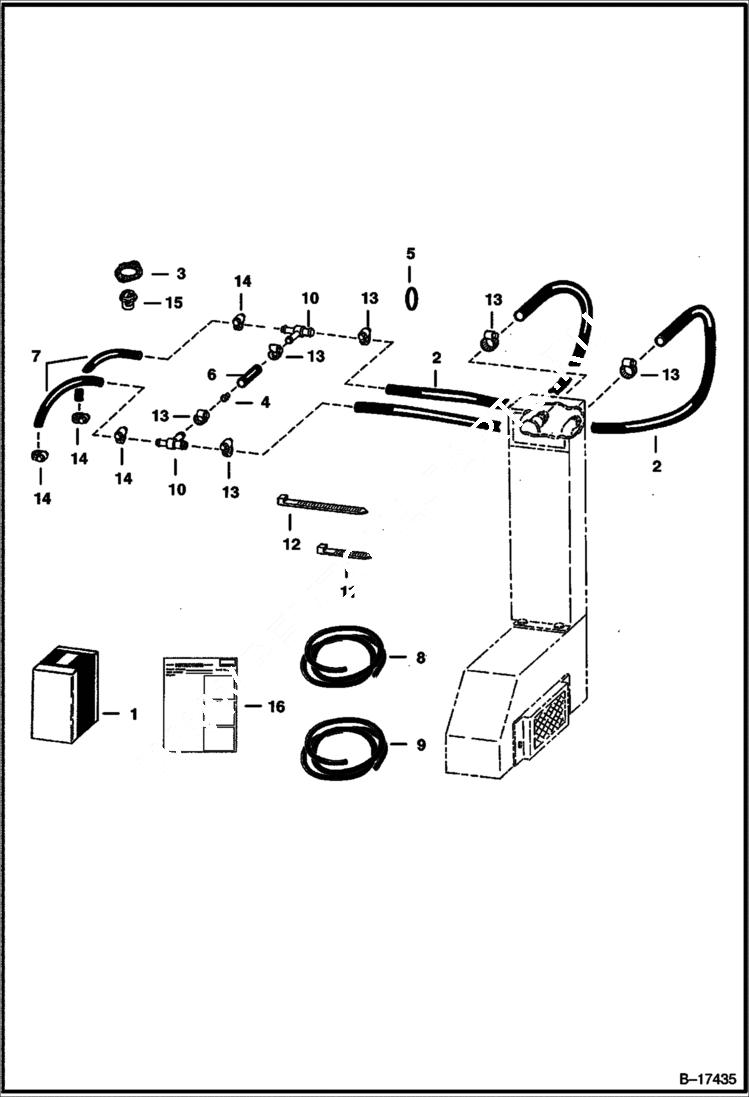

Запчасти Bobcat 500s HEATER PLUMBING KIT (Fresh Air) ACCESSORIES & OPTIONS

1

6715679

KIT Ref. 2-16 - for heater kit see Ill D2372

2

HOSE NLA - 75.0'' (1905 mm) long - Order Ref. 8

3

6732199

GASKET Was 6666790 - A

4

6585223

ORIFICE

5

6577545

GROMMET

6

HOSE NLA - 3.0'' (76.2mm) long - Order Ref. 8

7

HOSE NLA - 12.0'' (304.8mm) long - Order Ref. 9

8

889269

HOSE BULK/FT

9

6565977

HOSE

10

6648485

TEE

11

6660883

TIE

12

6624289

STRAP, TIE

13

5HM24

CLAMP constant tension

14

5HM20

CLAMP constant tension

15

6630184

THERMOSTAT 179.6 degrees F (82 degeees C) - Use W/cab heater

16

6724384

INSTRUCTIONS
