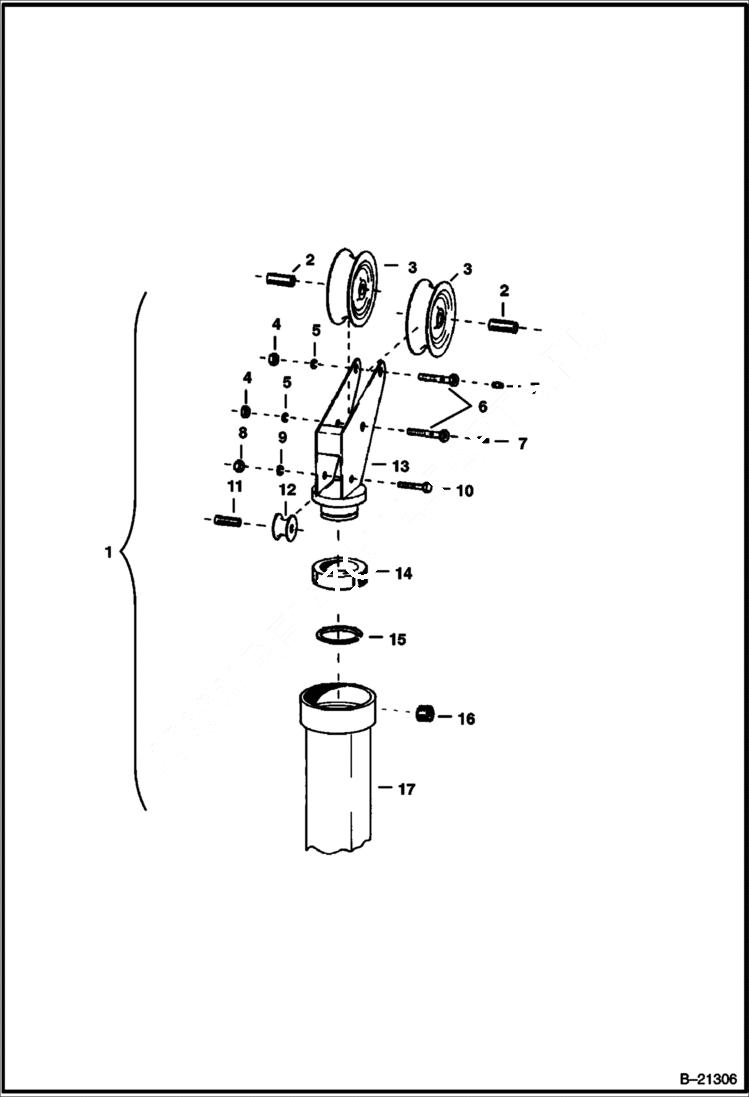

Запчасти Bobcat 600s ELECTRIC CORD SWIVEL Old Style ELECTRICAL SYSTEM

1

SWIVEL NLA - cord

2

BUSHING NLA - Was 6503091 - A

3

ROLLER NLA - Was 6503088 - A

4

61D8

NUT 5

5

4E8

WASHER

6

6503090

BOLT

7

10H35

FITTING, GREASE 10

8

61D6

NUT 5

9

4E6

WASHER

10

17C636

BOLT

11

BUSHING NLA - Was 6503092 - A

12

ROLLER NLA - Was 6503089 - A

13

BRACKET NLA

14

6515097

BEARING

15

SNAP RING NLA - Was 1318435 - A

16

15G505

SCREW

17

6501216

TUBE mast
