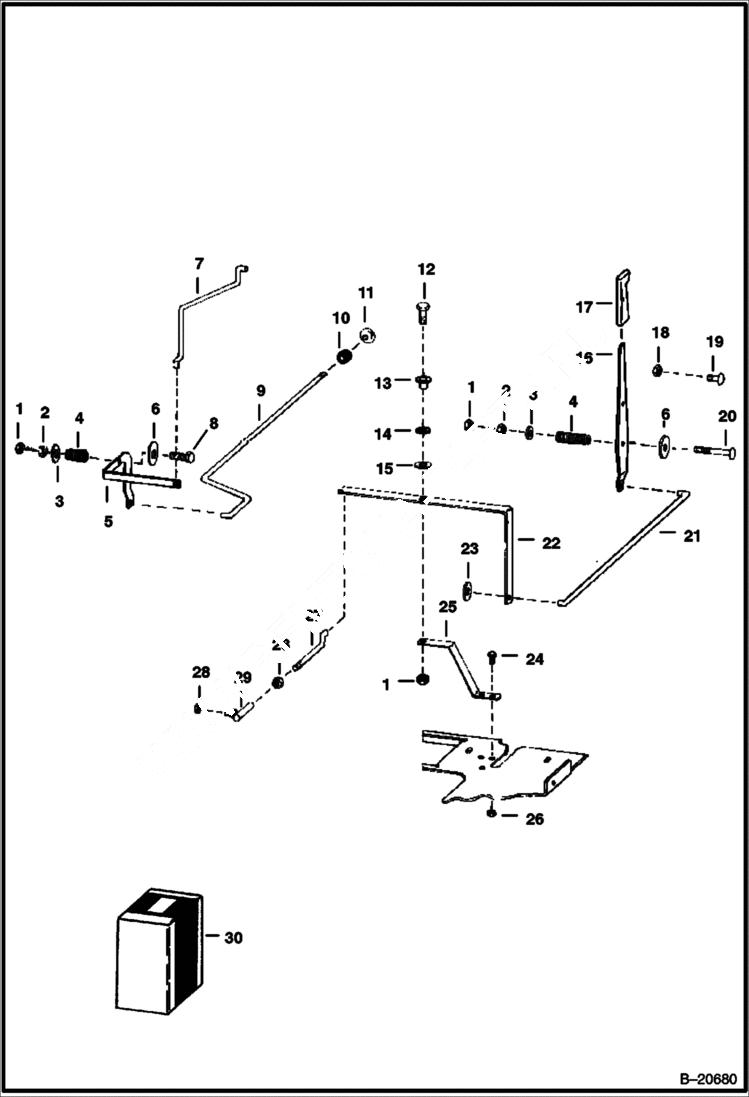

Запчасти Bobcat 600s THROTTLE & CHOKE (S/N 15001 & Above) POWER UNIT

1

85D6

NUT, 5

2

61D6

NUT 5

3

6505623

WASHER

3

27E6

WASHER 5

4

6503387

SPRING

4

6562126

SPRING

5

6560636

BELLCRANK

6

6562127

WASHER

7

ROD NLA - Was 6560637 - A

8

17C636

BOLT

9

ROD NLA - Was 6560638 - A

10

6519484

GROMMET

11

6519552

KNOB

12

31C616

SCREW

13

BUSHING NLA - Order Ref. 30

13

6562619

BUSHING

14

WASHER NLA - spring

15

WASHER NLA

16

6563940

LEVER

17

6553557

GRIP

18

83D6

NUT 5

19

37C616

BOLT Was 6514537 - A

20

7C632

BOLT

20

7C640

BOLT

21

ROD NLA - Was 6560641 - A

22

BELLCRANK NLA - Order Ref. 30

22

BELLCRANK NLA - Was 6562621 - A

23

PUSH NUT NLA - Was 6519255 - A

24

17C512

BOLT 5

25

BRACKET NLA - Order Ref. 30

25

BRACKET NLA - Was 6562620 - A

26

85D5

NUT 5

27

ROD NLA - Was 6557532 - A

28

62D4

NUT

29

6554858

BALL JOINT

30

6562671

KIT throttle linkage - W/Ref. 1, 12, 13, 22, 23 & 25
