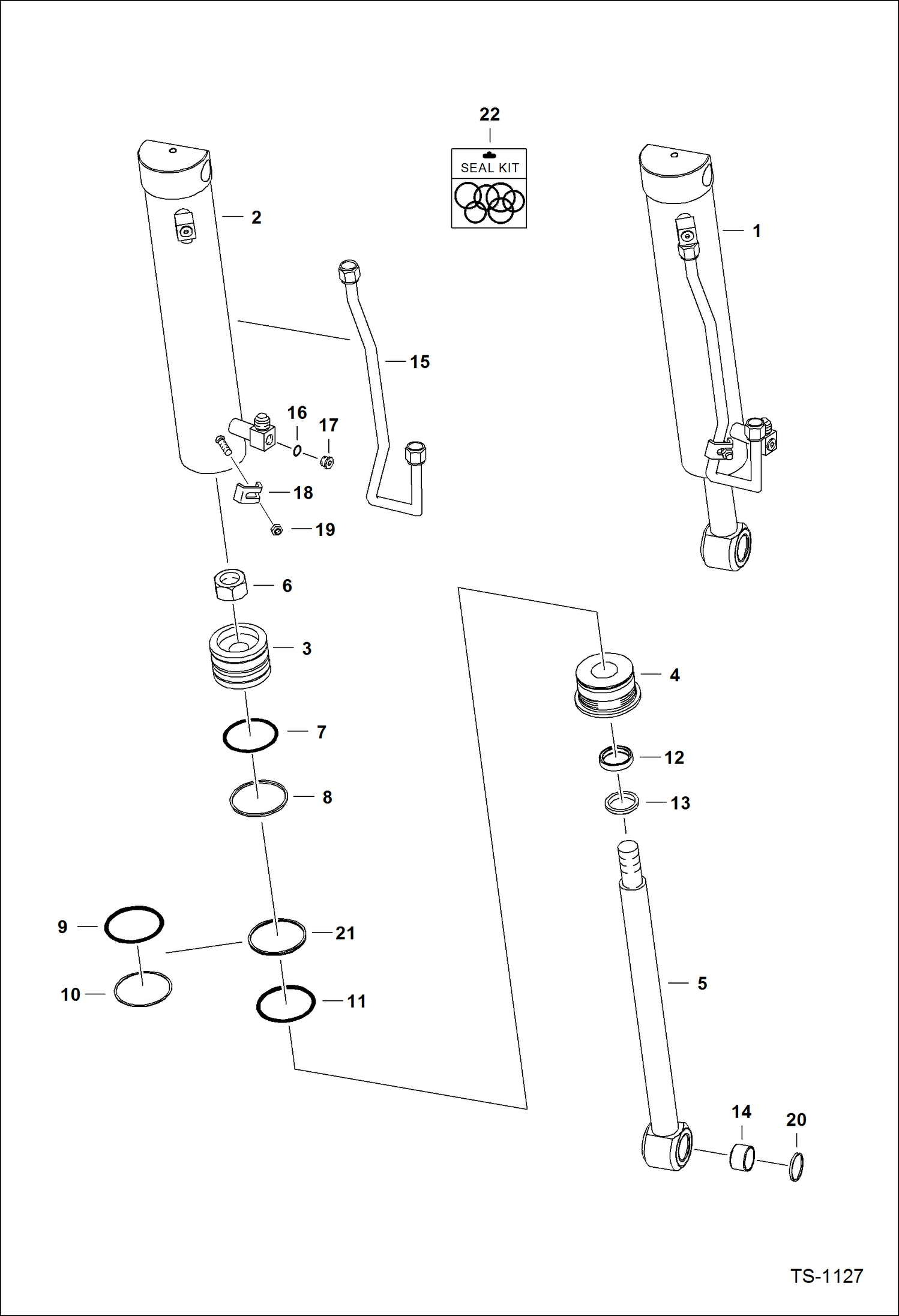

Запчасти Bobcat 600s TILT CYLINDER (W/O Rod Eye Grease Zerk Hole) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ TS1127A NLA - tilt - Ref. 2-19 - Order 6804692 Cylinder - Before ordering repair parts, make sure that this is the correct style cylinder. Note the difference

2

CASE See Illustration TILT CYLINDER/ TS1127A NLA - 21.56'' (547,62mm) overall length - Order 6804692 CYLINDER - Was 6586907 - A

3

6586906

PISTON 1.125'' (28,6 mm) I.D. - W/.56'' (14,22 mm) rod end recess

4

6539185

HEAD, CYL TILT

5

6586910

SHAFT, ROD CYL TILT W/Ref. 14 - 1.5'' (38,1 mm) O.D. - 21.18'' (538,mm) length end of thread to center of eye - W/O grease zerk hole

6

6810539

NUT Was 6804592 - A

7

25K30226

O RING 10 Was 54K30226 - B

8

6513466

PISTON RG

9

58K234

O RING 10 Was 54K40300 - B

10

73K234

BACK-UP RING back-up - Was 80K234 - A

11

82K236

O-RING Was 58K-236 - A

12

6667326

SEAL Was 6538141 - A

13

6690707

WIPER, ROD CYL Was 6665086 - A

14

6589665

BUSHING

15

6539144

TUBE

16

79K6

O RING 10 flat boss face

16

95K6

O'RING tapered boss face

17

PLUG NLA - W/Ref. 16 - flat boss face - Was 47K000005B - B

17

90KV5

PLUG W/Ref. 16 - tapered boss face

18

6562266

CLAMP

19

85D6

NUT, 5

20

6654117

SEAL, OIL 51 mm (2'') OD

20

225855

SEAL, OIL 10 38 mm (1.5'') OD

21

7008354

SEAL, QUAD

22

7135551

KIT, SEAL Ref. 6-9, 12, 13, & 21 - Was 6804605 - A
