REAR DOOR (Hinged)

Запчасти Bobcat 700s REAR DOOR (Hinged) MAIN FRAME

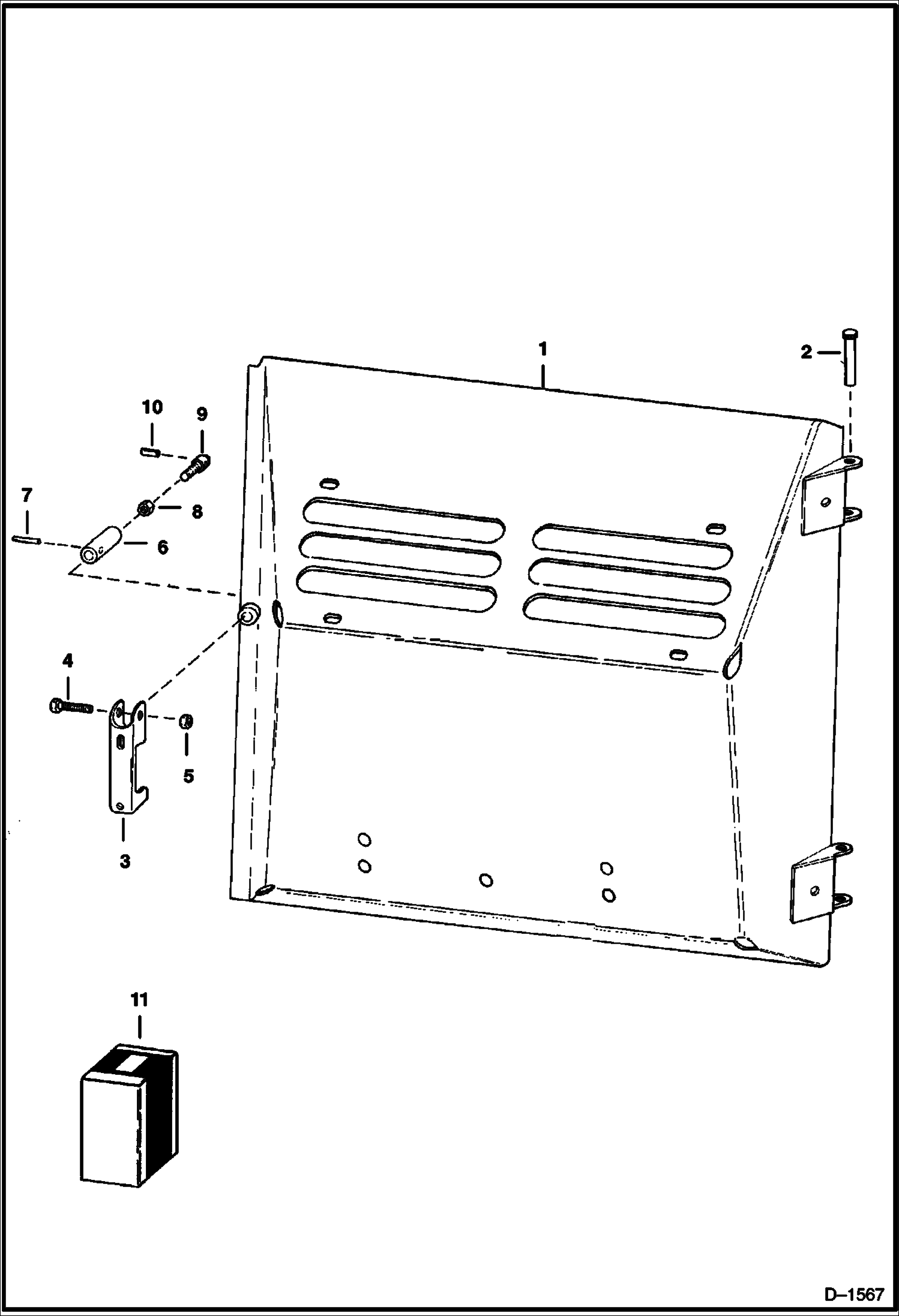

Схема запчастей Bobcat 700s - REAR DOOR (Hinged) MAIN FRAME
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6704328

REAR DOOR hinged - Was 6565073 - A

2

6564340

PIN

3

6563681

HANDLE

4

38C624

BOLT 5 Was 6564599 - A

5

85D5

NUT 5

6

6565628

NUT fine thread (5/8'')

7

33G404

SET SCRW5

8

6565627

NUT fine thread (5/8'')

9

6565629

SCREW fine thread (5/8'')

10

6599361

PIN

11

6579448

LATCH KIT Ref. 4 & 6-10
