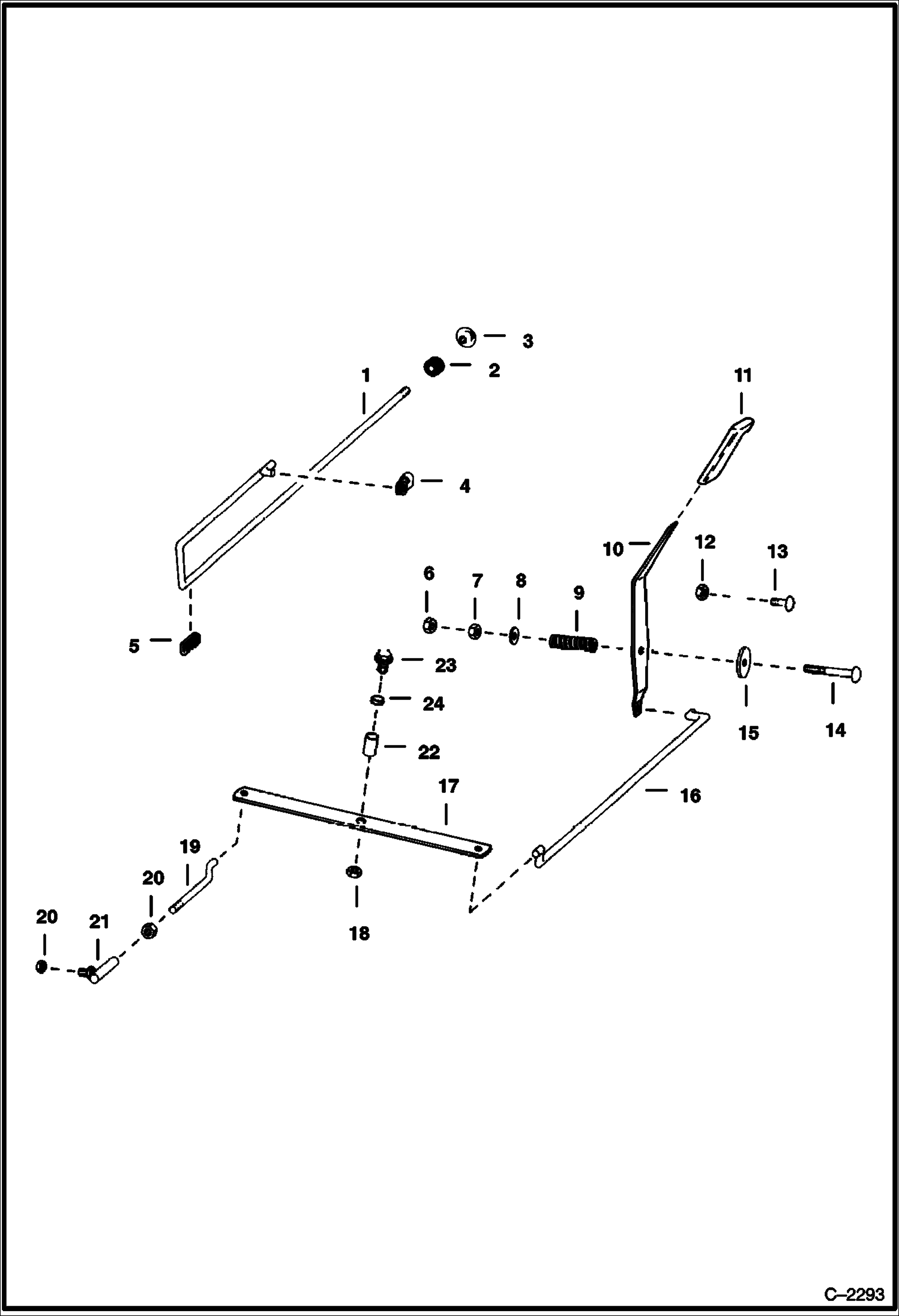

Запчасти Bobcat 700s THROTTLE & CHOKE (S/N 11999 & Below) POWER UNIT

1

ROD NLA - Was 6558907 - A

2

6519484

GROMMET

3

6519552

KNOB

4

6512274

CLIP

5

MOULDING NLA - Was 6557950 - A

6

81D6

NUT

7

61D6

NUT 5

8

6505623

WASHER

8

27E6

WASHER 5

9

6503387

SPRING

9

6562126

SPRING

10

6563940

LEVER

11

6553557

GRIP

12

6512897

NUT stop

13

37C616

BOLT stop - Was 6514537 - A

14

7C632

BOLT

14

7C640

BOLT

15

6562127

WASHER

16

ROD throttle NLA - throttle - Was 6558906 - A

17

6557530

LEVER

18

85D6

NUT, 5

19

ROD NLA - Was 6557532 - A

20

62D4

NUT

21

6554858

BALL JOINT

22

6544654

BUSHING

23

84G3712

BOLT 5

24

6512913

WASHER
