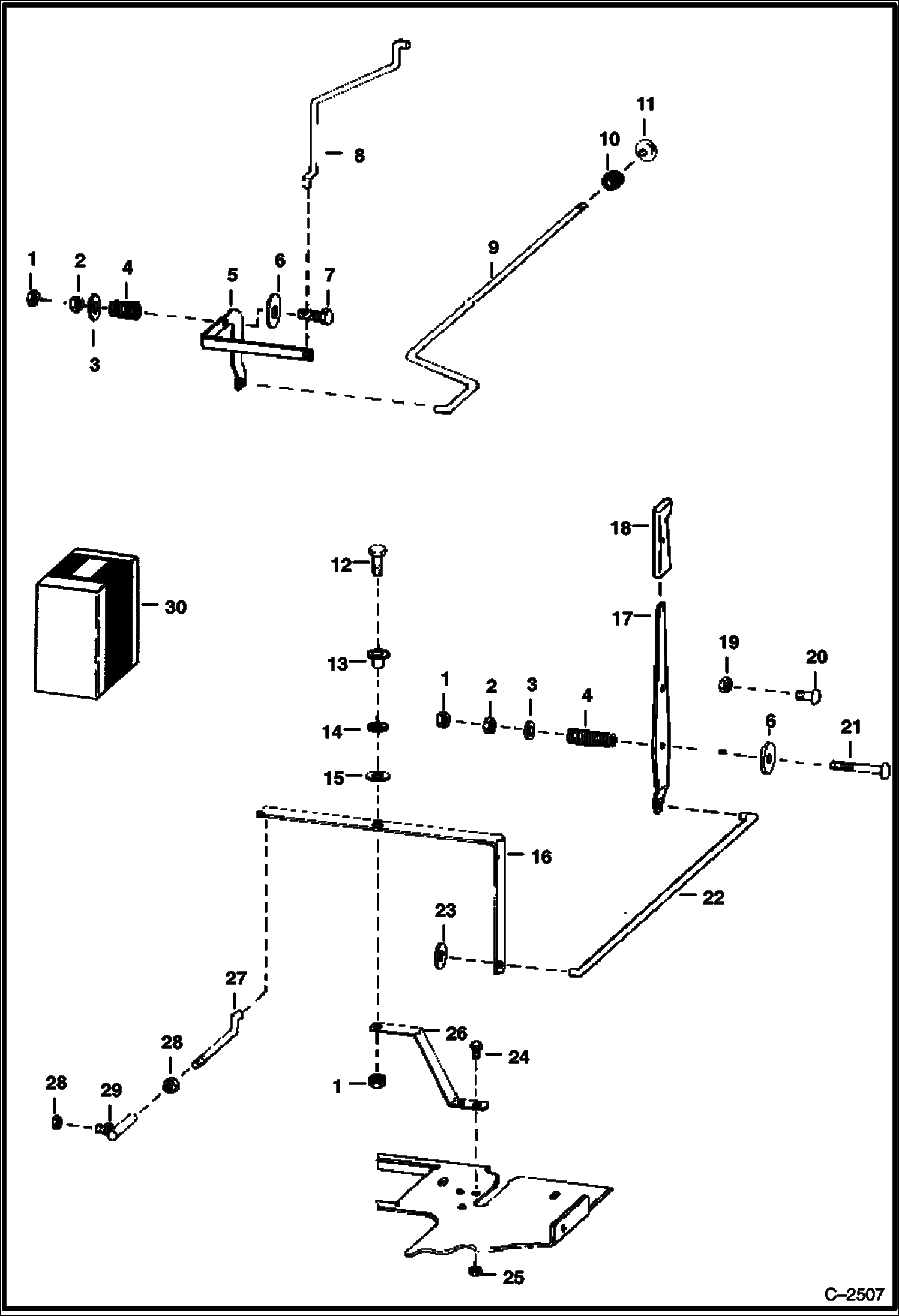

Запчасти Bobcat 700s THROTTLE & CHOKE (S/N 12001 & Above) POWER UNIT

1

85D6

NUT, 5

2

61D6

NUT 5

3

6505623

WASHER

3

27E6

WASHER 5

4

6503387

SPRING

4

6562126

SPRING

5

6560636

BELLCRANK

6

6562127

WASHER

7

17C636

BOLT

8

ROD NLA - Was 6560637 - A

9

ROD NLA - Was 6560638 - A

10

6519484

GROMMET

11

6519552

KNOB

12

31C616

SCREW

13

BUSHING NLA - Order Ref. 30

14

WASHER NLA

15

WASHER NLA

16

BELLCRANK NLA - Order Ref. 30

17

6563940

LEVER

18

6553557

GRIP

19

6512897

NUT stop

20

37C616

BOLT stop - Was 6514537 - A

21

7C632

BOLT

21

7C640

BOLT

22

ROD NLA - Was 6560641 - A

23

PUSH NUT NLA - Was 6519255 - A

24

17C512

BOLT 5

25

85D5

NUT 5

26

BRACKET NLA - Order Ref. 30

27

ROD NLA - Was 6557532 - A

28

62D4

NUT

29

6554858

BALL JOINT

30

6562671

KIT throttle linkage - Ref. 1, 12, 13, 16, 23 & 26
