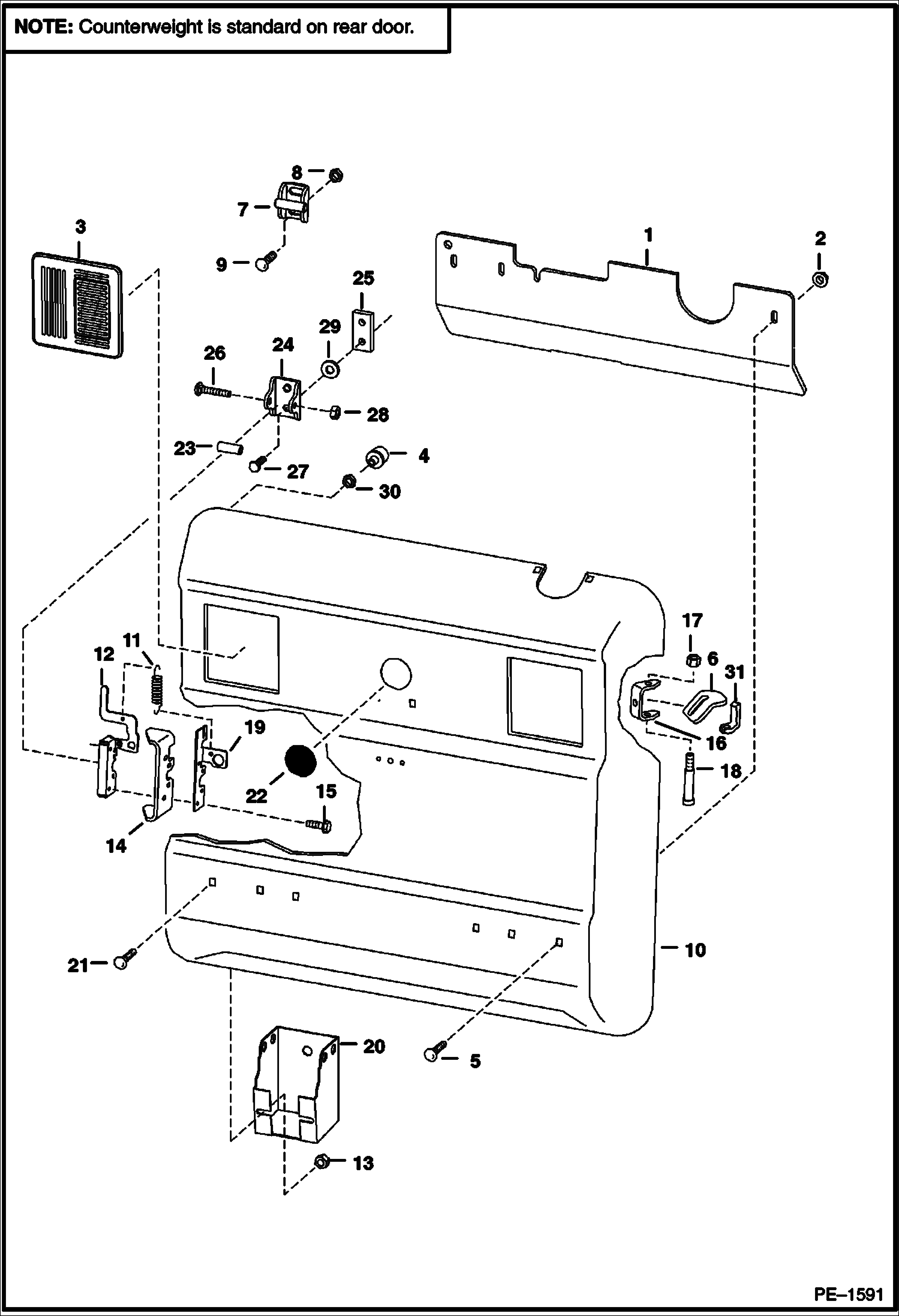

Запчасти Bobcat 700s REAR DOOR (S/N 5158 30001-40618, 5162 20001-23968) MAIN FRAME

1

6725256

COUNTERWEIGHT SEE NOTE

2

57D6

NUT 5

3

6670287

COVER

4

6655399

BUMPER Was 6714454 - B,D

5

37C632

BOLT 2''(50,8 mm) long

5

37C628

BOLT 1.75''(44,45 mm) long

5

37C624

BOLT 1.5''(38,1 mm) long

6

6714126

DOOR STOP

7

STRIKER ASSY. NLA - Order Ref. 23 - 29 - Was 6579969 - A

8

83D8

NUT 5

9

37C820

BOLT

10

REAR DOOR See BTI357 NLA - Was 6711524 - A

11

6714210

SPRING

12

6670867

LATCH, REAR DOOR

13

55D6

NUT

14

6711527

LATCH PLATE weld-on

15

31C420

BOLT 5

16

6733575

HINGE, REAR DOOR weld on - Was 6711526 - A

17

59D6

NUT

18

6809845

BOLT Was 38C856 - A

19

6711664

GUIDE, LATCH latch

20

6715318

TOOL HOLDER

21

37C612

BOLT

22

6718796

PLUG

23

6719550

TUBE striker

24

6719524

STRIKER

25

6719525

BAR threaded striker

26

37C644

BOLT carriage

27

17C820

BOLT

28

61D6

NUT 5

29

6675273

WASHER lock

30

61D5

NUT

31

6719766

STOP
