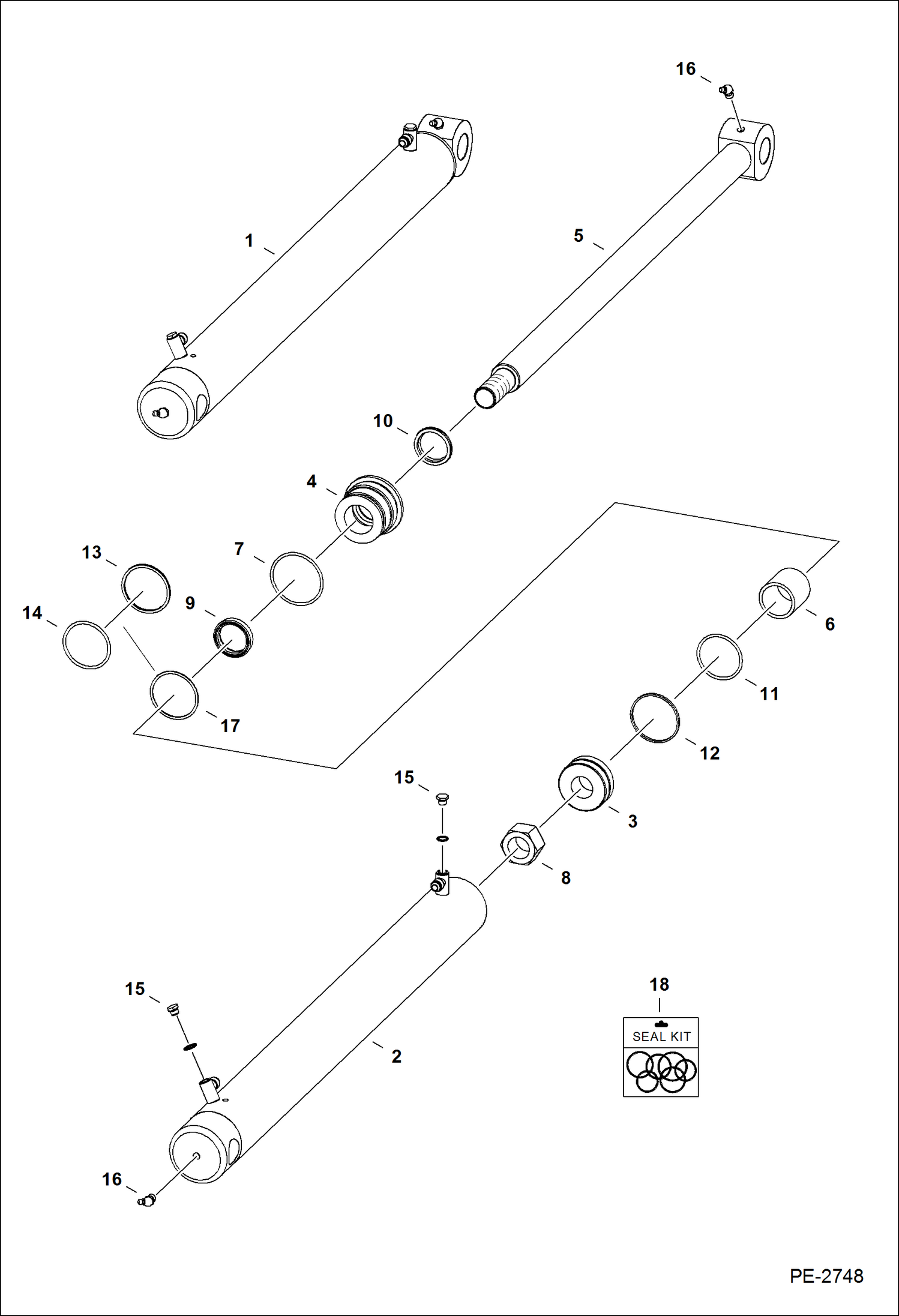

Запчасти Bobcat 700s LIFT CYLINDER HYDRAULIC SYSTEM

1

7117667

CYLINDER, LIFT Ref. 2 - 16

2

7117668

TUBE, CASE CYL LIFT

3

6678931

PISTON W/Ref. 9 & 10 - Also has Non-Replaceable wear sleeves

4

6806124

HEAD

5

7107896

ROD 32.29'' (820,2mm) long

6

6809593

SPACER

7

82K230

O-RING

8

6810539

NUT

9

1522534

SEAL

10

25K30202

O RING 10

11

25K40208

O RING 10 Was 54K40208 - B

12

73K228

BACK-UP RING back-up

13

6667326

SEAL rod

14

6690707

WIPER, ROD CYL wiper - Was 6665086 - A

15

6812170

PLUG

15

75K3

O-RING

16

11H15

GREASE FITTING

17

7008778

SEAL, QUAD

18

7135559

SEAL KIT Ref. 7-10, 13, 14, & 17 - Was 6816537 - A
