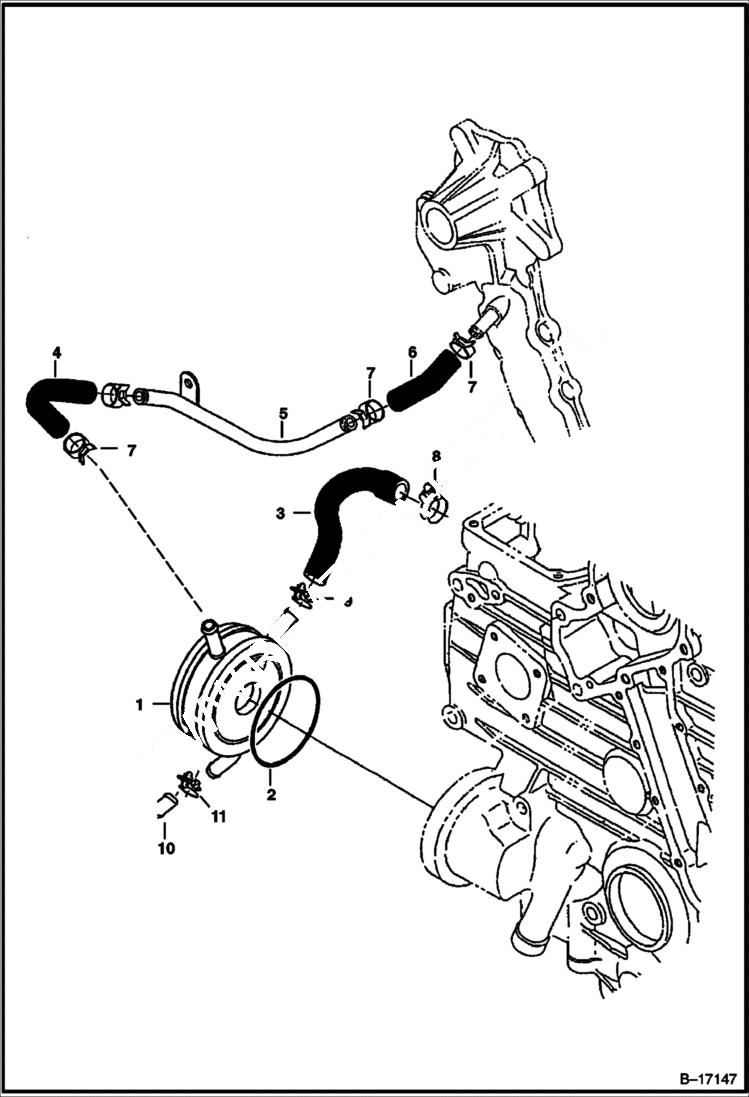

Запчасти Bobcat 700s OIL COOLER (Kubota - V2003T) (1G622-00000) S/N 500K12421 & Below, 519022517 & Below, 519212422 & Below POWER UNIT

1

OIL COOLER See Illustration OIL COOLER/ PE1455R NLA - W/Ref. 2 - ORDER 6731956 OIL COOLER KIT - WAS 6675680 - A

2

6698244

ORING Was 6657422 - B,D

3

6675670

HOSE

4

6675653

PIPE, OIL COVER

5

6675682

TUBE

6

6675651

PIPE, WATER

7

6680580

CLAMP Was 6652748 - A

8

3974679

BAND

9

6599040

BAND, PIPE

10

6677123

CAP Was 6725443 - A

11

5HM15

CLAMP
