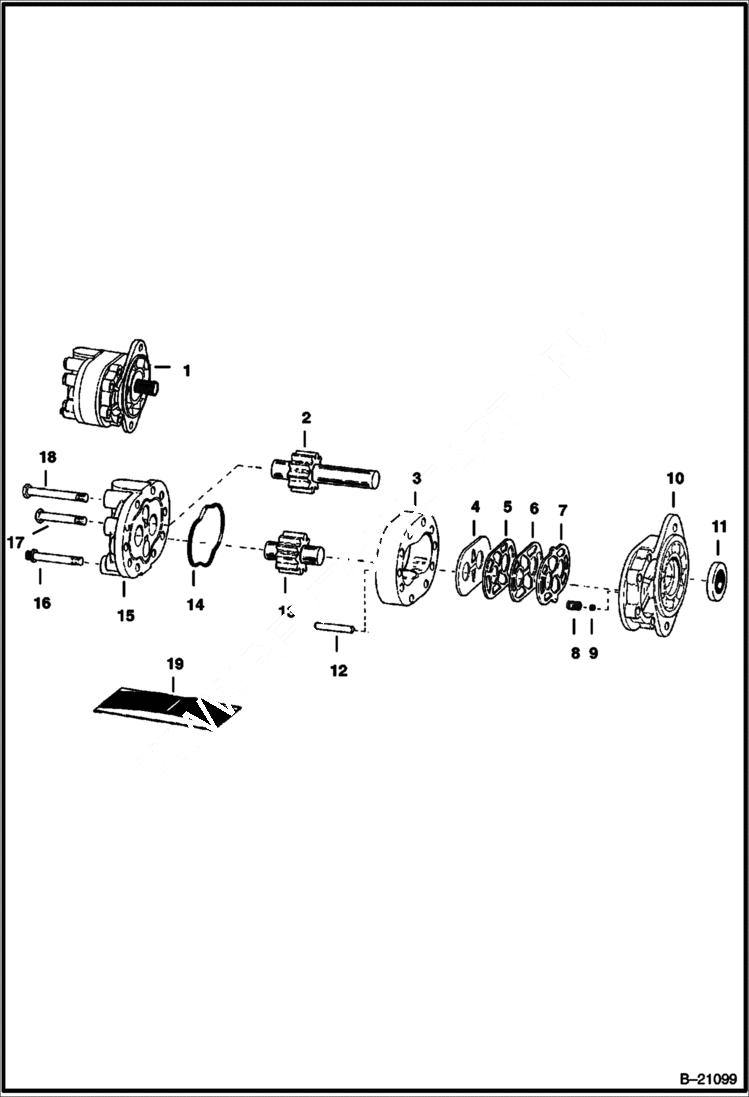

Запчасти Bobcat 800s HYDRAULIC GEAR PUMP HYDROSTATIC SYSTEM

1

6510490

PUMP, GEAR

2

GEAR NLA - drive - Was 6510496 - A

3

BODY NLA - Was 892286 - A

4

DIAPHRAGM NSS

5

GASKET NSS

6

SEAL NSS

7

SEAL NSS

8

SPRING NSS

9

BALL NSS - steel

10

6513974

PLATE front

11

3490597

SEAL shaft

12

DOWEL PIN NSS

13

1577489

GEAR idler

14

O-RING NSS

15

6513975

PLATE back

16

6632002

BOLT

17

17C540

BOLT

17

6632000

SCREW

18

17C548

BOLT

19

894215

SEAL KIT Ref. 4 - 9 & 14
