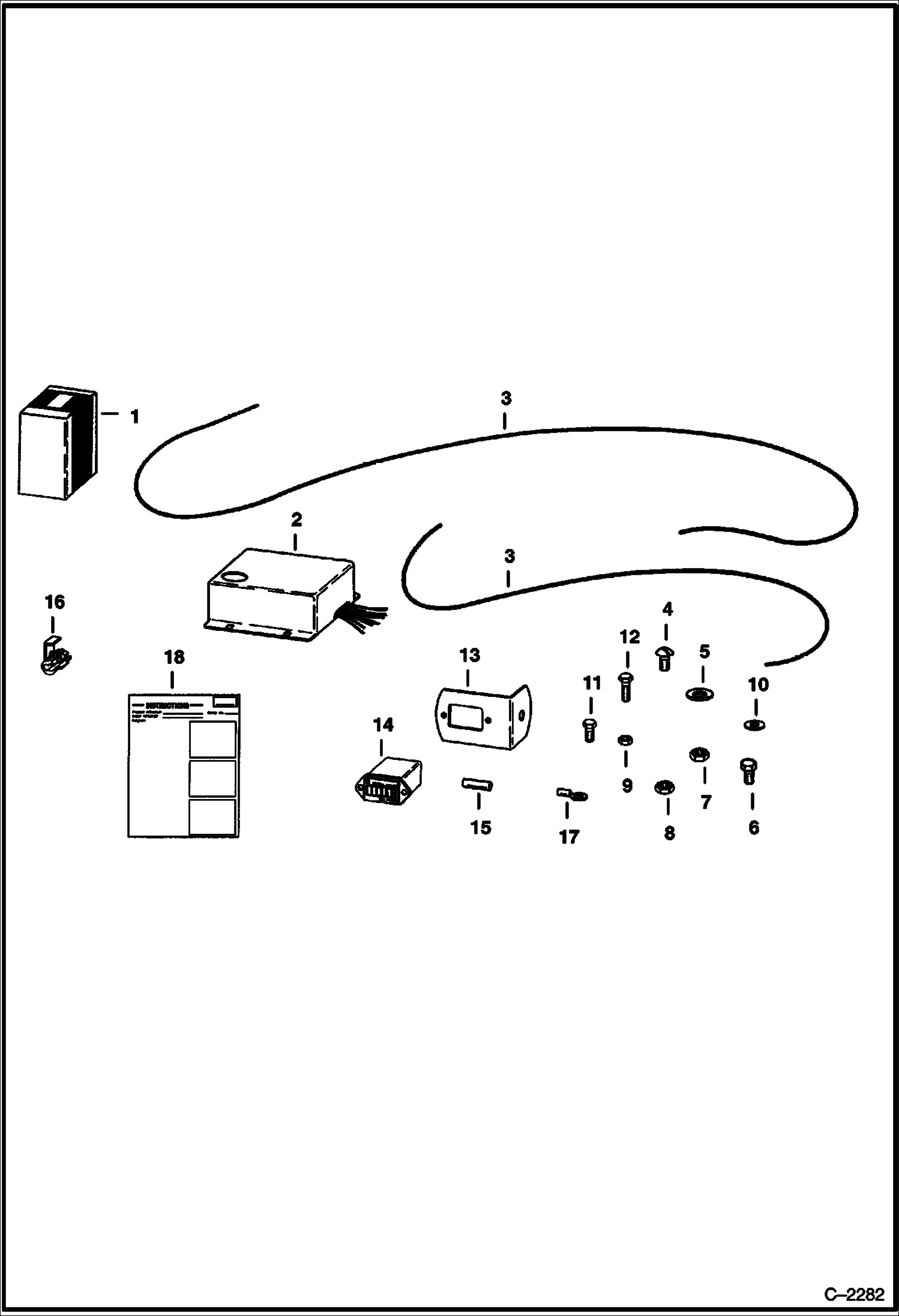

Запчасти Bobcat 800s RENTAL KIT (S/N 14084 & Below) ACCESSORIES & OPTIONS

1

6562298

KIT rental - Ref. 2-18 - Also order 6560569 Fuel Valve Kit

2

6513274

MODULE

3

WIRE NLA - 1 ft. (304,8 mm) - Was 774706B - A

3

774708

WIRE 3 ft. (914,4 mm)

4

85G608

SCREW

5

25E17

WASHER 5

6

17C614

BOLT

7

12D6

NUT 10

8

61D4

NUT 5

9

61D6

NUT 5

10

6E4

WASHER 10

11

17C408

BOLT

12

17C412

BOLT 5

13

6552906

BRACKET

14

6631657

HOURMETER

15

637641

SLEEVE

16

6513275

CONNECTOR

17

30R104

TERMINAL

17

30R107

TERMINAL

18

INSTRUCTIONS NLA - Print Instructions from BASS - Was 6556831 - A
