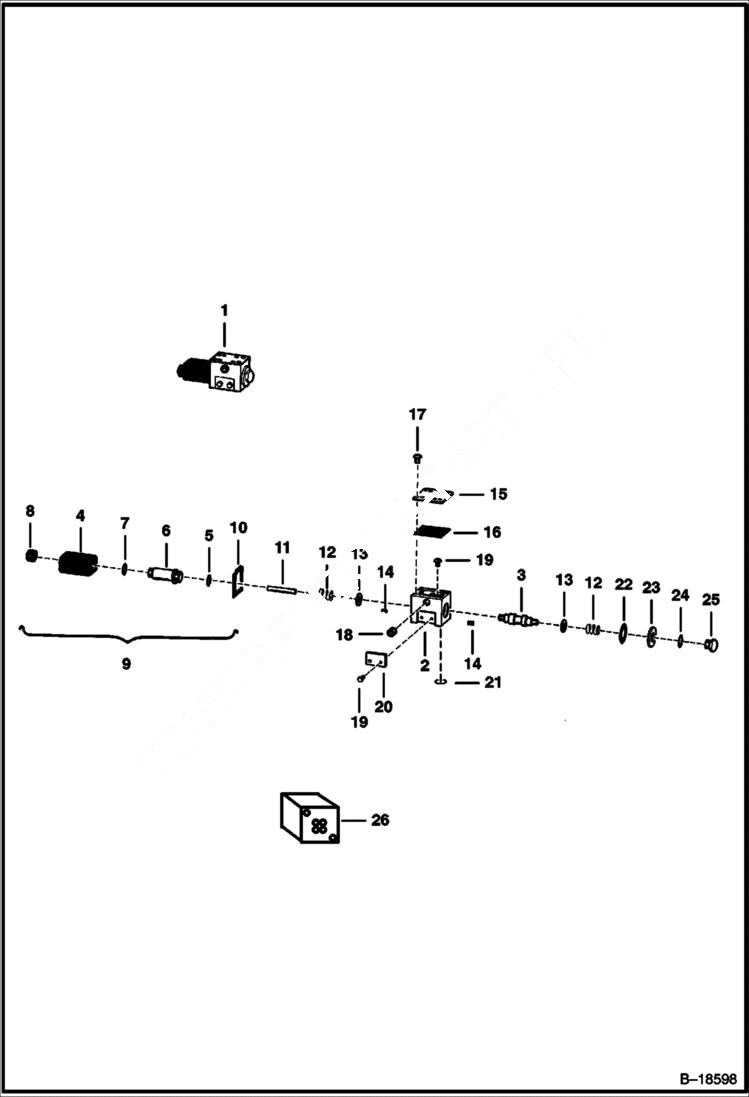

Запчасти Bobcat 800s HIGH HORSEPOWER HYDRAULICS (Solenoid Valve) ACCESSORIES & OPTIONS

1

6649944

VALVE

2

6651173

HOUSING

3

6651174

PISTON

4

6651175

SOLENOID

5

6651180

O-RING

6

CORE NSS - Order Ref. 9

7

6651200

O-RING

8

6651199

RETAINER

9

6651201

CORE ASSY. W/Ref. 5-8

10

6651185

GASKET

11

6651187

PIN drive

12

6651182

SPRING

13

6651179

WASHER

14

6651183

ROLL PIN

15

6651188

PLATE

16

6651177

GASKET

17

6651186

SCREW

18

6651184

PLUG

19

6651191

SCREW

20

6651190

PLATE

21

6651178

O-RING

22

6651176

GASKET

23

6651195

WASHER

24

6651180

O-RING

25

6651193

PLUG

26

6659255

PORT BLOCK
