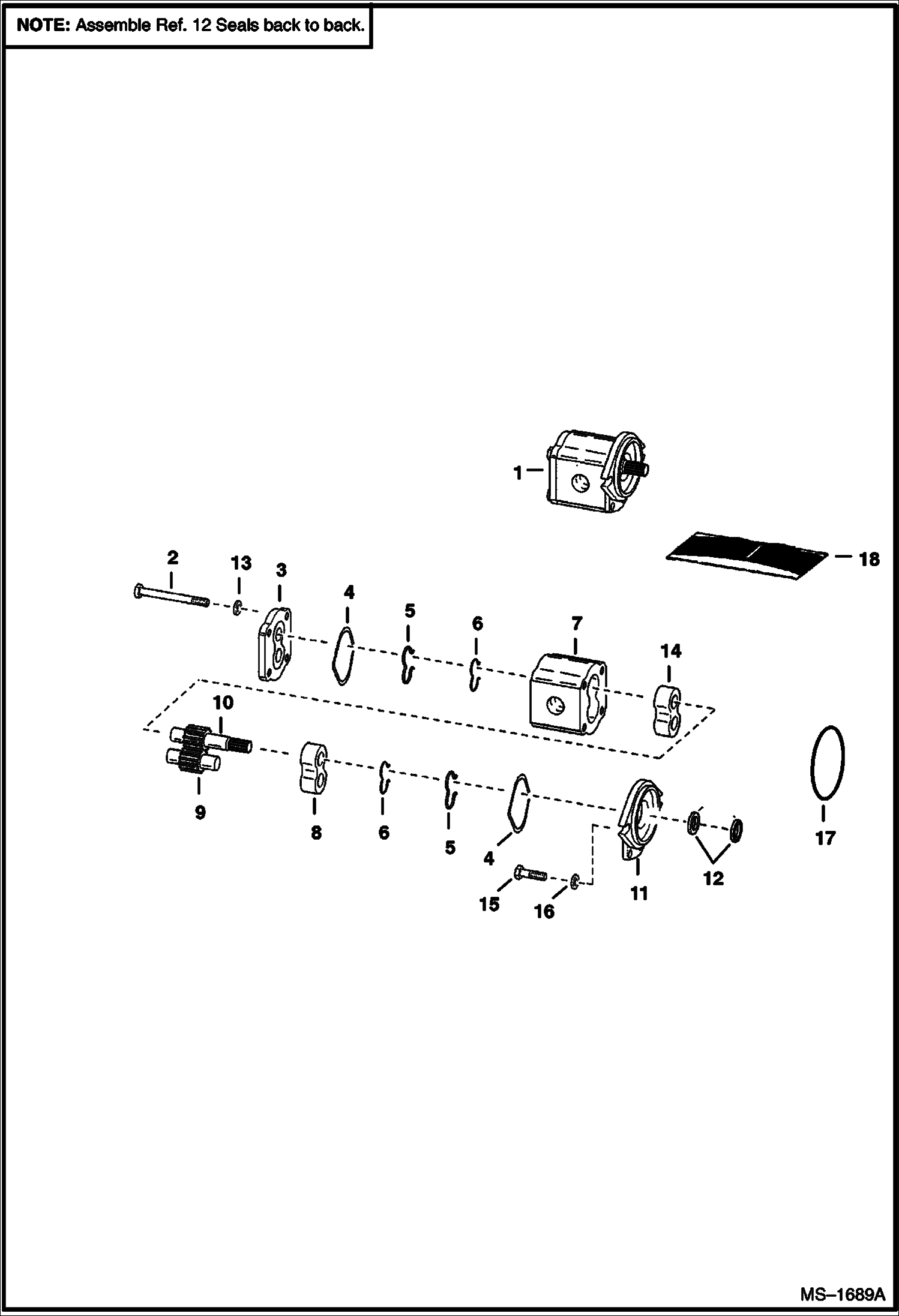

Запчасти Bobcat 800s GEAR PUMP (B5501-34022) (22 mm Dia. Shaft) HYDROSTATIC SYSTEM

1

PUMP NLA - Ref. 2-14 - Order 6673916 - Also Order 6717662 Tee, 19J-12 (2) Clamp, 58K-214 O-Ring, 17C-620 (4) Bolt & (1) 24KN-5 Plug - Was 6665551 - A

1

6673916

PUMP

2

BOLT NSS

3

COVER NLA - Was 6658123 - A

4

O-RING NSS - seal

5

SEAL NSS

6

RING NSS

7

BODY NSS

8

BEARING NSS

9

GEAR NSS - idler - 22 mm dia.

10

GEAR NSS - drive - 22 mm dia.

11

COVER NLA - Was 6658122 - A

12

SEAL NSS

13

WASHER NSS

14

BEARING NSS

15

17C616

BOLT 5

16

28E6

WASHER

17

6645080

O-RING

18

6666834

SEAL KIT Ref. 4-6 & 12
