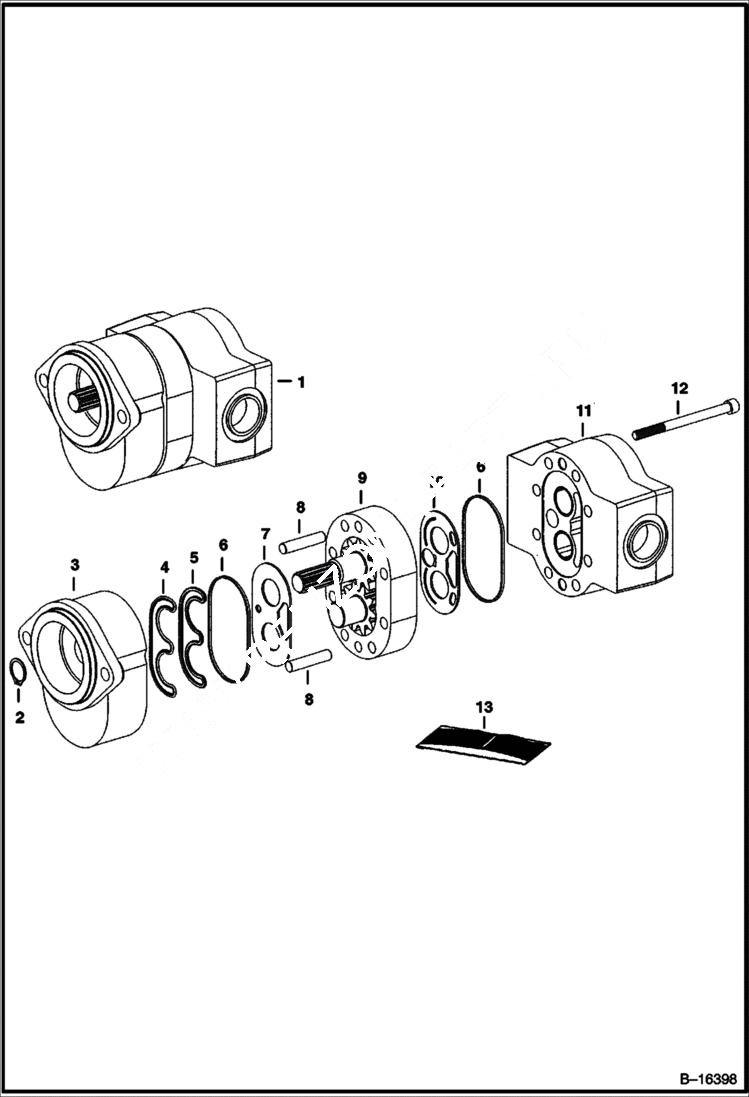

Запчасти Bobcat 800s GEAR PUMP (Cast Iron) (S/N 514449260, 514541069 & Above) HYDROSTATIC SYSTEM

1

GEAR PUMP NLA - Standard Flow - Model 163D1185 - Order 6681596 Pump - Was 6678224 - A

1

GEAR PUMP NLA - Model 163D1301 - Was 6681596 - A

1

6687867

PUMP, GEAR Model 163D70003

2

SNAP RING NSS

3

COVER NSS

4

SEAL NSS - back-up

5

SEAL NSS - load

6

SEAL NSS

7

WEAR PLATE NSS

8

PIN NSS

9

SECTION NSS

10

WEAR PLATE NSS

11

BODY NSS

12

BOLT NSS

13

6678732

SEAL KIT Ref. 4-7 & 10

13

6688325

KIT, SEAL Ref. 4-7 & 10 - For 6687867
