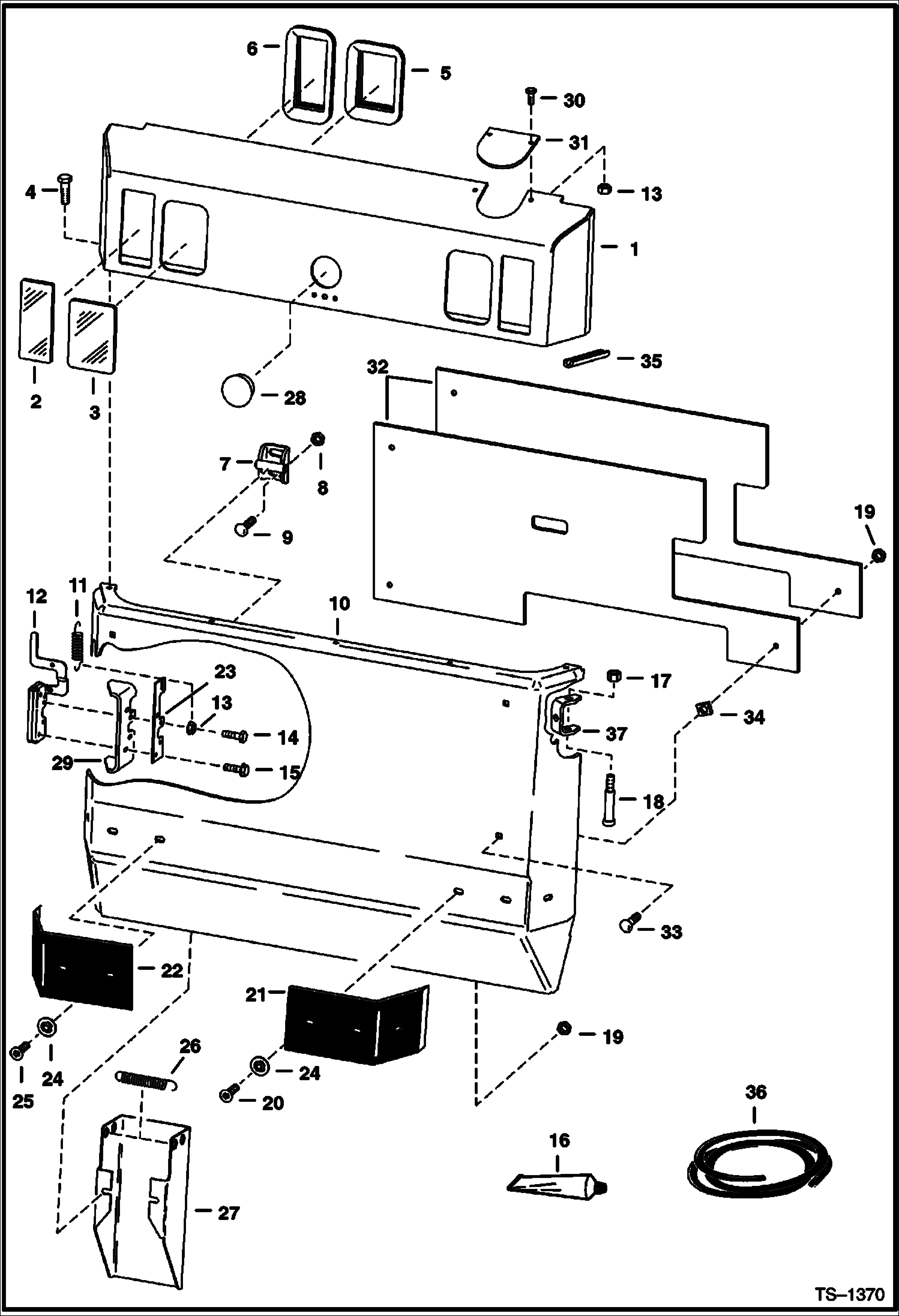

Запчасти Bobcat 800s REAR DOOR (S/N 5144 15609 & 5145 11106 & 5146 11152 & Below) MAIN FRAME

1

6705776

HOOD steel

2

6708587

COVER

3

6708588

COVER

4

84G3716

SCREW 5

5

6703796

MOUNT light

6

6705774

MOUNT light - Was 6705980 - B,D

7

6715157

STRIKER ASSY. Was 6579969 - A

8

83D8

NUT 5

9

37C820

BOLT

10

6708624

REAR DOOR

11

6563128

SPRING

12

6649420

LATCH, REAR DOOR

13

55D4

NUT

14

17C424

BOLT

15

31C420

BOLT 5

16

6649835

ADHESIVE Use W/Ref. 21 & 22

17

59D6

NUT

18

38C856

BOLT

19

57D6

NUT 5

20

9G628

BOLT 5

21

6577400

BUMPER bond W/Ref. 16

22

6577401

BUMPER bond W/Ref. 16

23

6704464

GUIDE latch

24

6704332

WASHER

25

9G636

BOLT 5

26

6700743

SPRING

27

6709379

TOOL HOLDER

28

6718796

PLUG Was 6660646 - A

29

6700279

BRACKET weld on

30

35C412

BOLT

31

6711747

COVER

32

6712177

WEIGHT

33

37C624

BOLT

34

1612281

SPRINGNUT

35

MOULDING NLA - 3.5'' (89mm) long - Order Ref. 36

36

6512686

MOULDING bulk - sold per foot

37

6577395

HINGE weld-on
