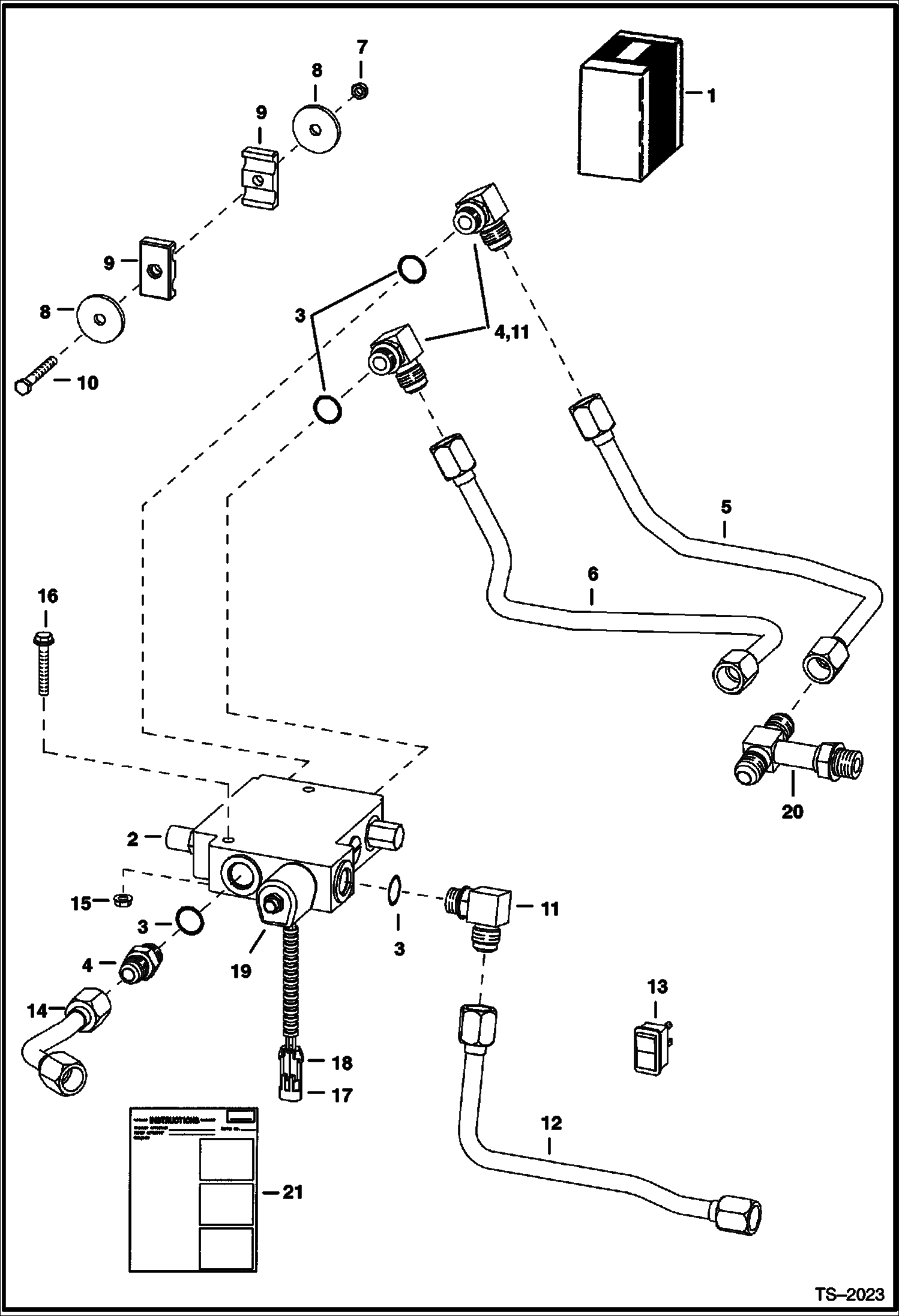

Запчасти Bobcat 800s BUCKET POSITIONING KIT (S/N 5141 22001-39999) ACCESSORIES & OPTIONS

1

6716282

KIT Ref. 2-20

2

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 - NLA - Order 6673959 valve- If loader is not equipped with an on/off switch, also order 6647784 plug, 79K8 O-ring, 6647785 spring, & 6647783 lo

3

99K10

O'RING

4

CONNECTOR NLA - W/Ref. 3 - prior to G-series - not in kit - Was 15KV00007B - A

4

CONNECTOR NLA - W/Ref. 3 - G-series - will work on prior to G-Series - Was 15KV00007B - A

4

97K10

O-RING 10 flared end

4

15KB1010

FITTING, HYD CONNECTOR W/Ref. 3 - flat boss face

5

6715078

TUBELINE prior to G-series - not in kit

5

6725954

TUBELINE G-series - will work on prior to G-series

6

6715077

TUBELINE prior to G-series - not in kit

6

6725953

TUBELINE G-series - will work on prior to G-series

7

85D6

NUT, 5 not in kit

8

872229

WASHER not in kit

9

6701893

CLAMP not in kit

10

17C632

BOLT 5 not in kit

11

17KB1010

FITTING, HYD ELBOW W/Ref. 3 - prior to G-series - not in kit - Was 17KV00007B - A

11

ELBOW NLA - W/Ref. 3 - G-series - will work on prior to G-Series - Was 17KV00007B - A

11

97K10

O-RING 10 flared end

11

17KB1010

FITTING, HYD ELBOW flat boss face

12

6715281

TUBELINE

13

6668814

SWITCH

14

6715076

TUBELINE

15

83D5

NUT 5

16

17C540

BOLT Was 35C000540B - B

17

6641179

CONNECTOR 2-pin

18

6641180

LOCK Use W/ 2-pin connector

19

SOLENOID See Illustration BUCKET POSITIONING VALVE/ MS1943

20

TEE See Illustration HYDRAULIC CIRCUITRY/ MS1671 See Illustration HYDRAULIC CIRCUITRY/ TS1932 - not in kit

21

6900573

INSTRUCTIONS
