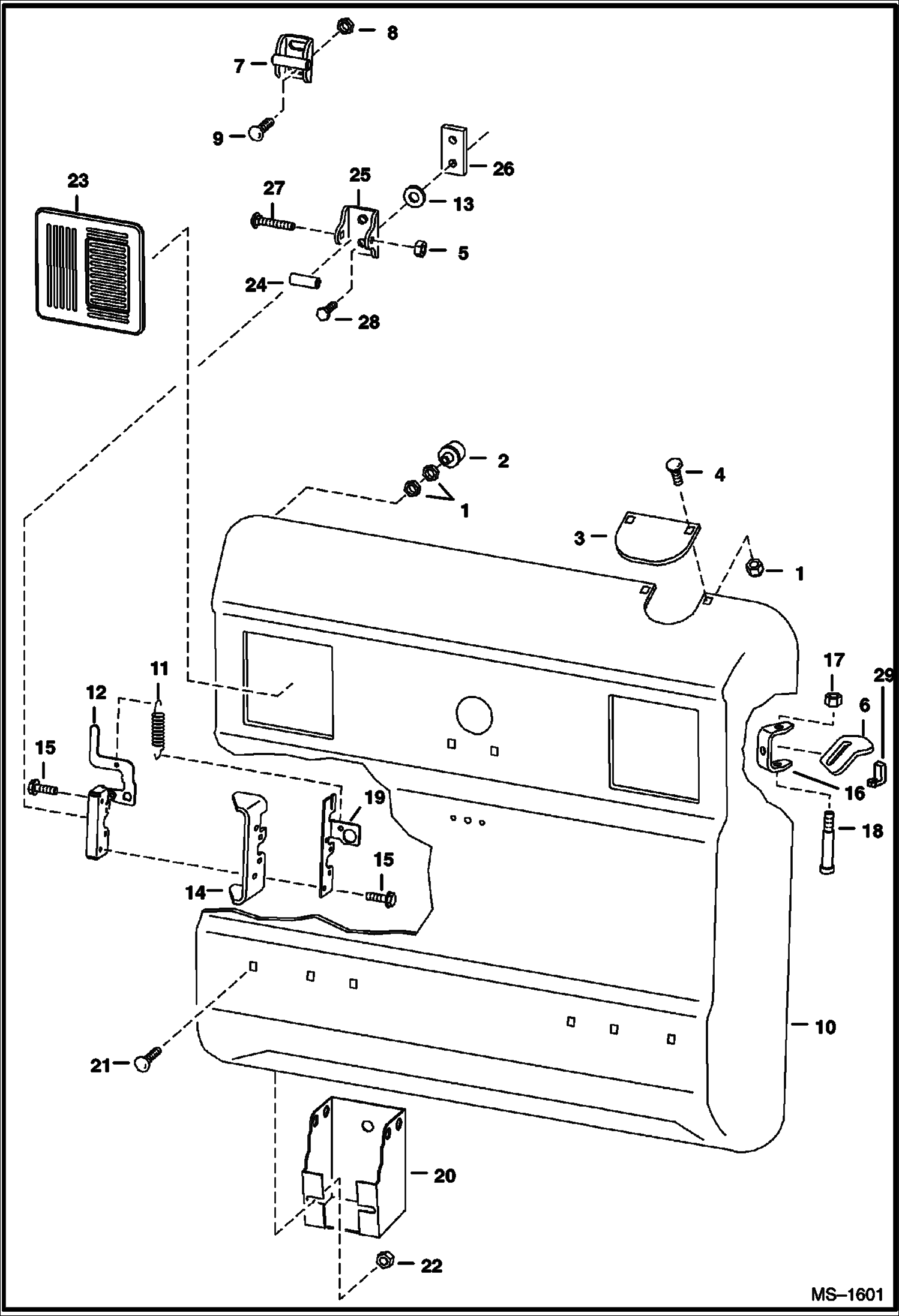

Запчасти Bobcat 800s REAR DOOR (S/N 514140001 Thru, 514240001 Thru, 5179 11001 Thru) MAIN FRAME

1

61D5

NUT

2

6655399

BUMPER Was 6714454 - B,D

3

6714509

COVER exhaust

4

37C512

BOLT

5

61D6

NUT 5

6

6714126

DOOR STOP

7

6715157

STRIKER ASSY.

8

83D8

NUT 5

9

37C820

BOLT carriage

10

REAR DOOR See BTI357 - NLA - Was 6711524 - A

11

6714210

SPRING

12

6670867

LATCH, REAR DOOR

13

6675273

WASHER lock - Was 6675263 - B,D

14

6711527

LATCH PLATE weld-on

15

31C420

BOLT 5

16

6733575

HINGE, REAR DOOR weld-on - Was 6711526 - A

17

59D6

NUT

18

6809845

BOLT Was 38C856 - B

19

6711664

GUIDE, LATCH latch

20

6715318

TOOL HOLDER standard for Europe

21

37C612

BOLT

22

55D6

NUT

23

6670287

COVER

24

6719550

TUBE striker

25

6719524

STRIKER

26

6719525

BAR threaded striker

27

37C644

BOLT carriage

28

17C820

BOLT

29

6719766

STOP
