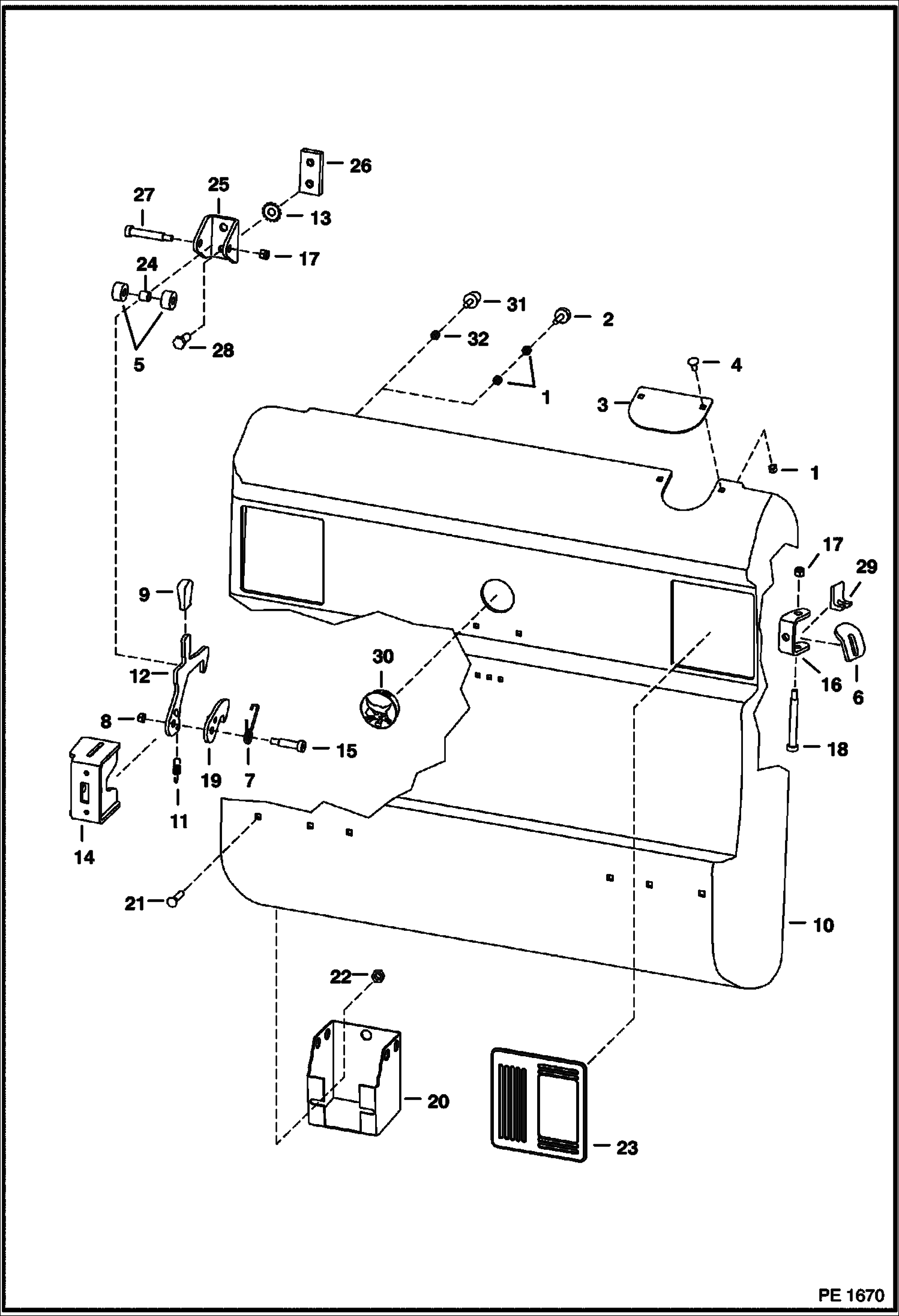

Запчасти Bobcat 800s REAR DOOR (S/N 5141 & Above, 5142 & Above, 5179 & Above) MAIN FRAME

1

61D5

NUT

2

6655399

BUMPER flat - Use W/Ref. 10 (NLA/rear door) - Was 6714454 - B,D

3

6714509

COVER exhaust

4

37C512

BOLT

5

6809726

ROLLER

6

6714126

DOOR STOP

7

6810132

SPRING

8

85D6

NUT, 5

9

6564452

GRIP

10

REAR DOOR NLA - W/two hole bumper braces - Order 6729991 Rear Door & (2) of Ref. 31 - Was 6711524 - A

10

6729991

REAR DOOR W/one hole bumper mount

11

6810141

SPRING Was 6714210 - B

12

6732715

LATCH Was 6729685 - A

13

6675273

WASHER lock

14

6729939

LATCH PLATE weld-on

15

38C824

SCREW

16

6733575

HINGE, REAR DOOR weld-on - Was 6711526 - A

17

59D6

NUT

18

6809845

BOLT Was 38C856 - B

19

6733667

LATCH, REAR DOOR

20

6715318

TOOL HOLDER standard for Europe

21

37C612

BOLT

22

55D6

NUT

23

6670287

COVER

24

6809734

BUSHING

25

6809727

CHANNEL

26

6719525

BAR threaded striker

27

38C840

BOLT carriage

28

17C820

BOLT

28

BOLT NLA - hex socket - Was 25G000820B - A

29

6719766

STOP

30

6718796

PLUG

31

6733616

BUMPER tapered - Use W/Ref. 10 (6729991 rear door)

32

61D5

NUT
