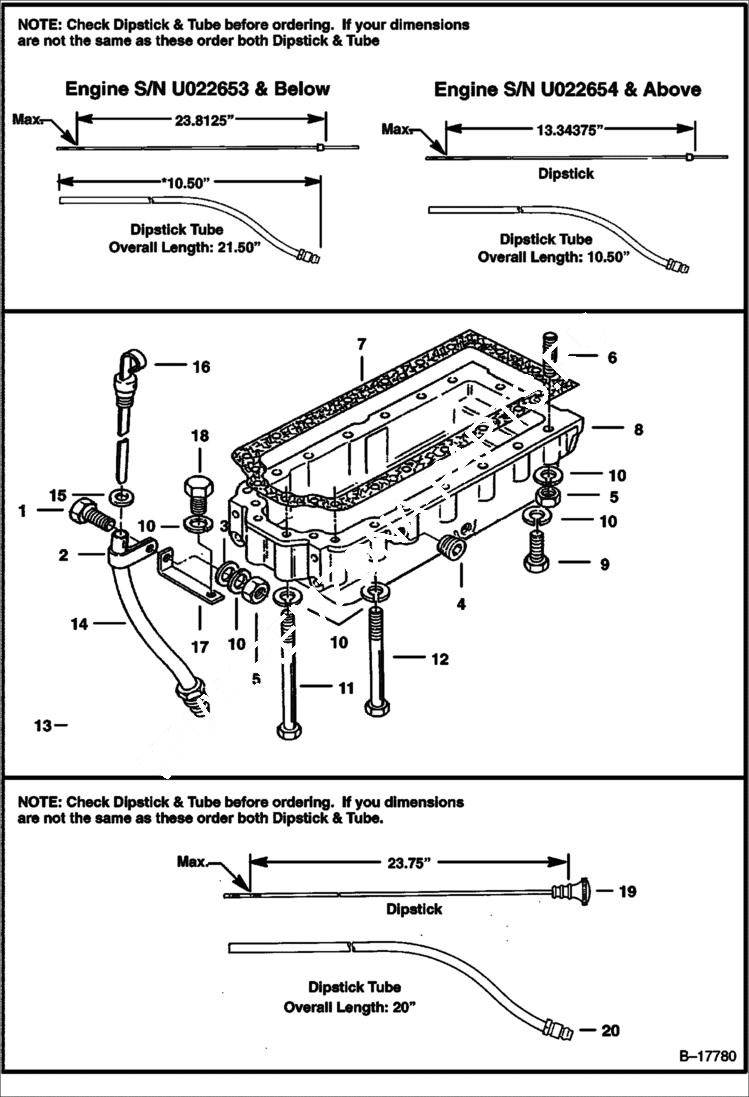

Запчасти Bobcat 900s LUBRICATION SYSTEM POWER UNIT

1

18C512

BOLT

2

6H31

CLIP

3

3725700

WASHER

4

16F8

PLUG

5

10D5

NUT

6

STUD NLA - Was 6634223 - A

7

3727656

GSKT Spec. No. LD70177-2200 - Was 6633126 - A

7

3727656

GSKT Spec. No. LD70269-2200 - Was 6662042 - A

8

6632538

OIL PAN

9

18C514

BOLT

10

4E5

WASHER

11

6649444

BOLT Was 18C000572B - B

12

18C552

BOLT

13

3490066

NUT

14

TUBE NLA - dipstick 21.5'' (526,7) long - Order 6668829 & 6668830 - Was 6515731 - A

14

TUBE NLA - dipstick 10.5'' (266,7) long - Order 6667506 & 6667512 - Was 6510524 - A

15

3725516

WSHR dipstick seal

16

DIPSTICK NLA - 23.8125'' (604,8) long - Order 6668829 & 6668830 - Was 6632539 - A

16

DIPSTICK NLA - 13.34375'' (388,9) long - Order 6667506 & 6667512 - Was 6633915 - A

17

3737945

BRACKET

18

18C508

BOLT

19

6668829

DIPSTICK 23.75'' (603,25mm) long

19

6667512

DIPSTICK 10.50'' (266,7mm) long

20

6668830

TUBE dipstick - 20'' (508mm) long

20

6667506

TUBE dipstick - 13.25'' (336,55mm) long
