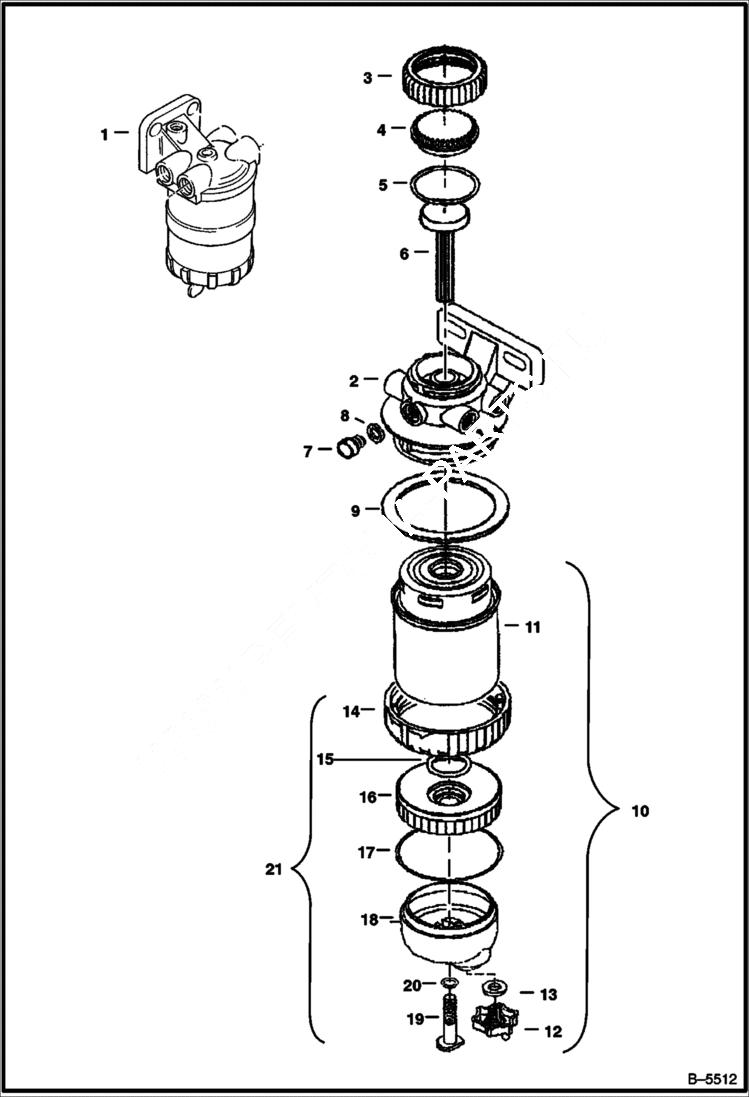

Запчасти Bobcat 900s PUMP FUEL PRE-LIFT - PARTS (Power Unit) POWER UNIT

1

6671003

FILTER See Illustration PUMP FUEL PRE-LIFT/ B17247 - W/Ref. 2-20

2

HEAD NSS - Order Ref. 1

3

6668640

NUT

4

6668641

CAP

5

6668642

SEAL

6

6668643

PLUG

7

6668661

PLUG

8

6672556

SEAL

9

6668644

SEAL

10

6671649

FILTER, FUEL W/Ref. 11-13

11

ELEMENT NSS - Order Ref. 10

12

VALVE NSS - Order Ref. 10

13

WASHER NSS - Order Ref. 10

14

RING NSS - Order Ref. 21

15

6668664

SEAL

16

RING NSS - Order Ref. 21

17

6668669

SEAL

18

BOWL NSS - Order Ref. 21

19

BOLT NSS - Order Ref. 21

20

6677513

SEAL

21

6669137

KIT Filter - W/Ref. 14 - 20 - Was 6669317 - D

21

6677514

KIT bowl seal - Ref. 15, 17 & 20
