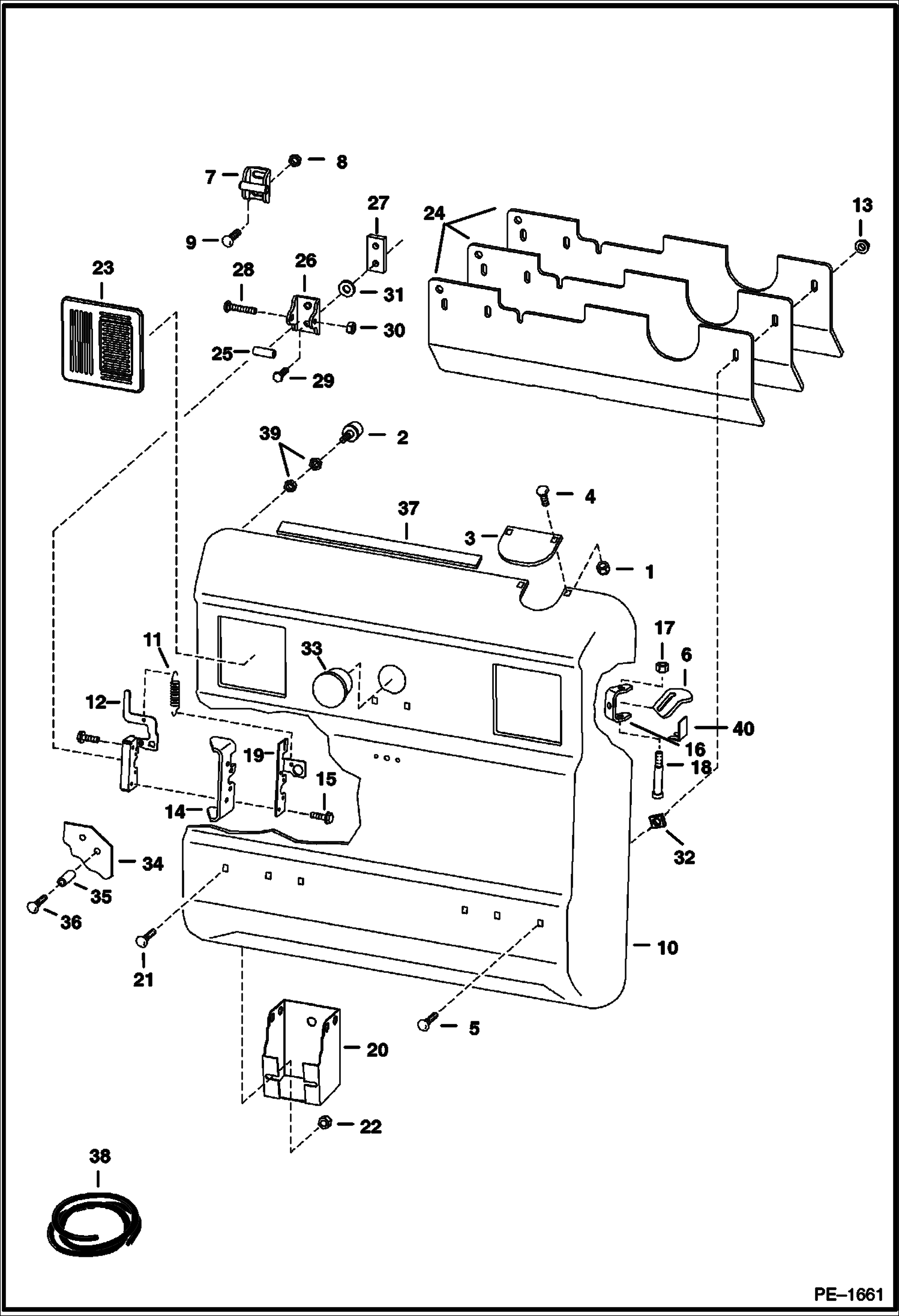

Запчасти Bobcat 900s REAR DOOR (S/N 562216268 & Below, 516516034 & Below) MAIN FRAME

1

57D5

NUT

2

6655399

BUMPER

3

6714509

COVER exhaust

4

37C512

BOLT

5

37C628

BOLT

6

6714126

DOOR STOP

7

6715157

STRIKER ASSY.

8

83D8

NUT 5

9

37C820

BOLT

10

REAR DOOR See BTI357 NLA - Was 6711524 - A

11

6714210

SPRING

12

6670867

LATCH, REAR DOOR

13

57D6

NUT 5

14

6711527

LATCH PLATE Weld On

15

31C420

BOLT 5

16

6733575

HINGE, REAR DOOR Weld On - Was 6711526 - A

17

59D6

NUT

18

38C856

BOLT

19

6711664

GUIDE, LATCH latch

20

6807729

TOOL HOLDER Was 6715318 - B

21

37C612

BOLT

22

55D6

NUT

23

6670287

COVER

24

6725256

COUNTERWEIGHT

25

6719550

TUBE striker

26

6719524

STRIKER

27

6719525

BAR threaded striker

28

37C644

BOLT carriage

29

17C820

BOLT

30

61D6

NUT 5

31

6675273

WASHER lock

32

1612281

SPRINGNUT spring

33

6718796

PLUG

34

6807316

PLATE

35

6807444

SPACER

36

35C516

BOLT 10

37

SEAL NLA - 27.5'' (698,5 mm) long - Order Ref. 38

38

6667586

SEAL bulk - Sold Per Foot

39

61D5

NUT

40

6719766

STOP
