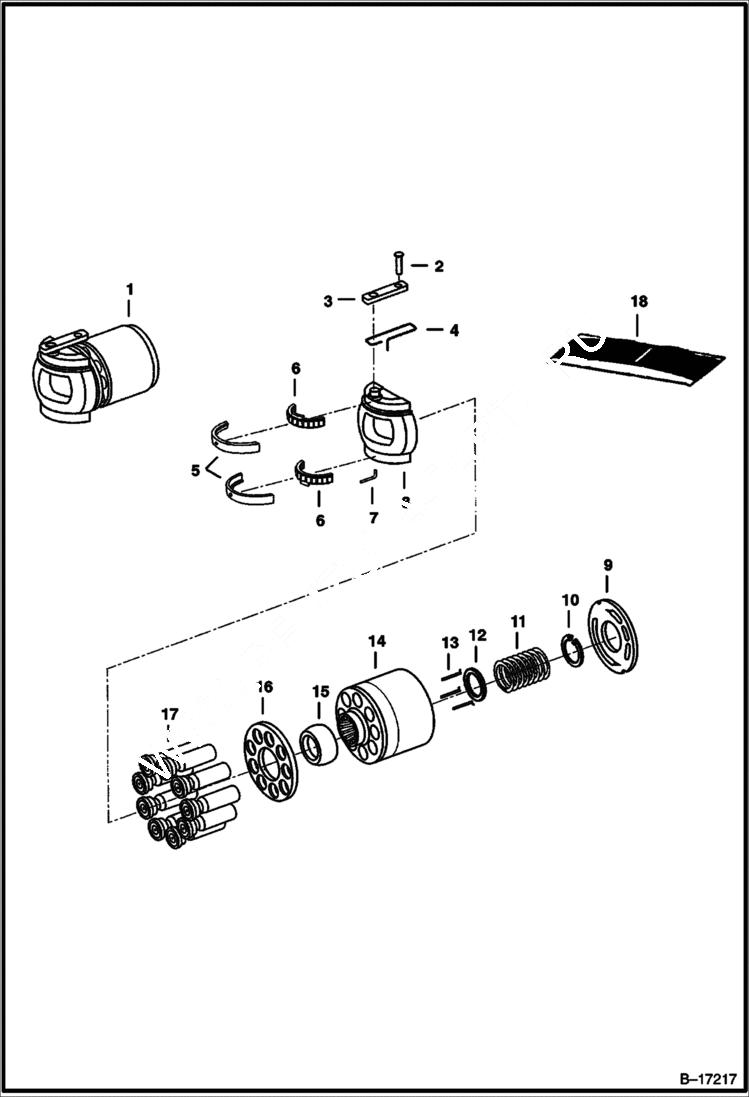

Запчасти Bobcat 900s BLOCK - ROTARY GROUP HYDROSTATIC SYSTEM

1

BLOCK ASSY See Illustration HYDROSTATIC PUMP/ B17215 See Illustration HYDROSTATIC PUMP/ C3237 - NLA - Ref. 16 on page HYDROSTATIC PUMP (Gear Pump End) & Ref. 18 on page HYDROSTATIC PUMP (Pulley Side)

2

6967430

PIN Was 6671774 - A

3

6967427

SLIDE Was 6671773 - A

4

6671775

WIRE

5

6671770

RACE pair

6

6967443

BEARING (SET) set - Was 6671771 - A

7

6671772

WIRE

8

6671766

SWASH PLATE

9

6674914

PLATE ccw

10

6674919

SNAP RING

11

6674918

SPRING

12

6674921

SPACER

13

6674920

PIN

14

6674913

BARREL

15

6674917

BALL retaining

16

6674916

PLATE retaining

17

6674915

PISTON

18

KIT NLA - W/Ref. 7, 9-13, 15-17 - Was 6673875 - A
