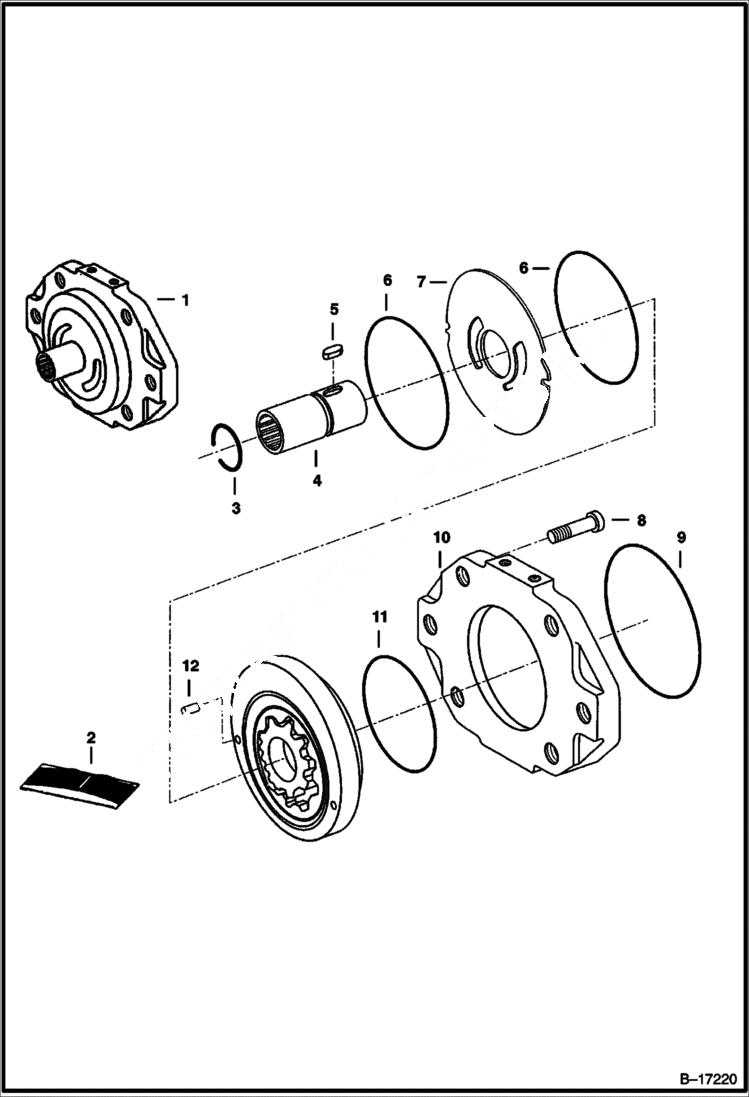

Запчасти Bobcat 900s CHARGE PUMP (Pulley End) HYDROSTATIC SYSTEM

1

6671740

CHARGE PUMP See Illustration HYDROSTATIC PUMP/ B17215 - Ref. 25 & W/Ref. 2-12 on this page

2

6672016

SEAL KIT See Illustration HYDROSTATIC PUMP/ C3237 REF. 28

3

6682945

SNAP RING Was 6671814 - A

4

SHAFT NLA - Order 6671740 - Was 6671815 - A

5

6674927

KEY Was 6671816 - A

6

6967564

RING Was 6671817 - A

7

6671822

WEAR PLATE wear

8

6671820

BOLT

9

6671821

O-RING

10

FLANGE NLA - Order 6671740 - Was 6671819 - A

11

6671818

O-RING

12

6682950

PIN Was 6671829 - A
