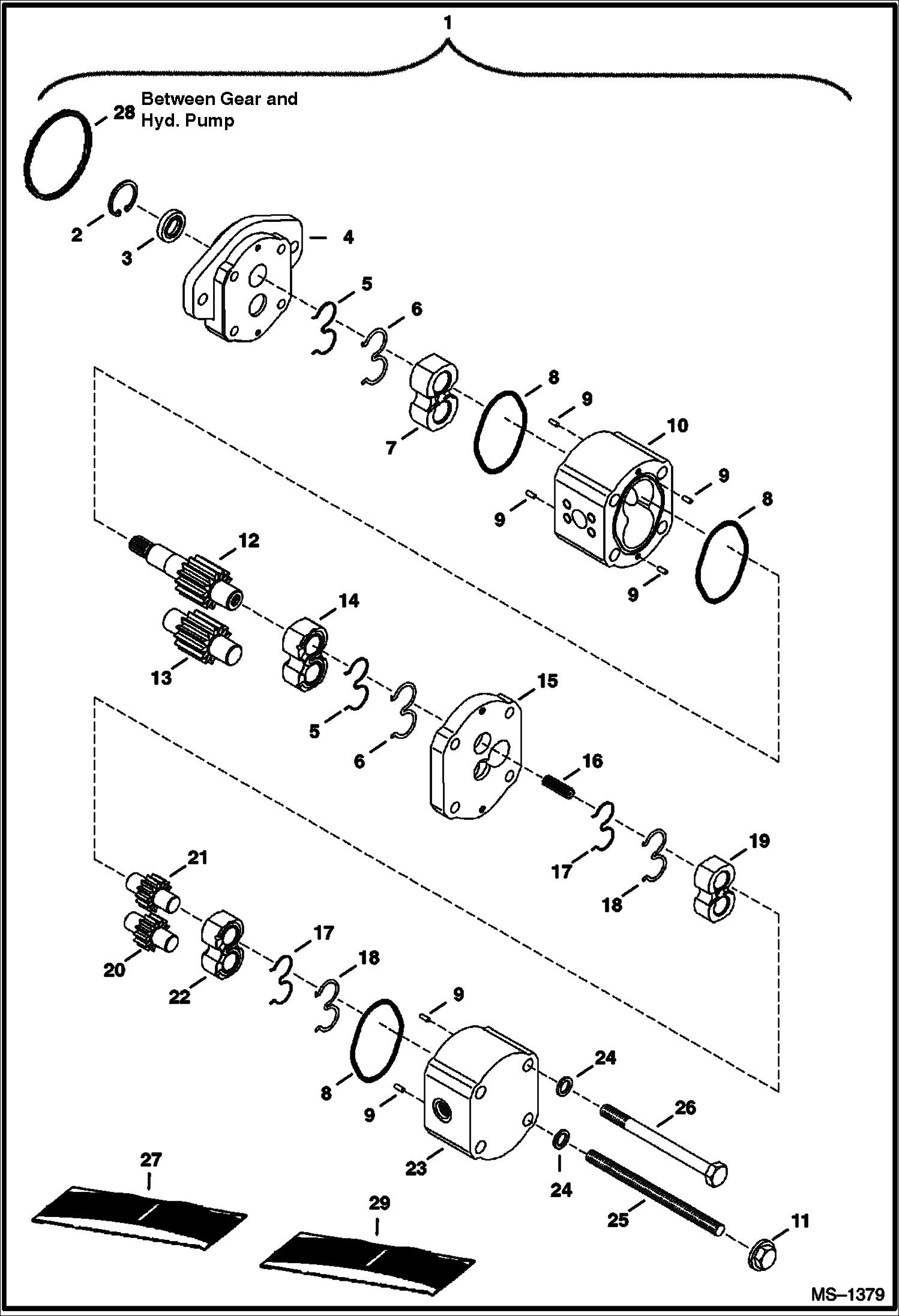

Запчасти Bobcat 900s DUAL GEAR PUMP HYDROSTATIC SYSTEM

1

6674739

GEAR PUMP Ref. 2 - 26

2

6672156

SNAP RING

3

6675798

SEAL

4

FLANGE NSS

5

6672161

O-RING

6

6675799

SEAL

7

HOLDER NSS

8

6675800

O-RING

9

6662929

DOWEL PIN

10

BODY NSS

11

6675381

NUT

12

GEAR NSS

13

GEAR NSS

14

HOLDER NSS

15

END CAP NSS

16

6670632

SHAFT

17

6675801

O-RING

18

6675802

SEAL

19

HOLDER NSS

20

GEAR NSS

21

GEAR NSS

22

HOLDER NSS

23

HOUSING NSS

24

6675796

WASHER

25

ROD NSS - threaded

26

BOLT NSS

27

6675797

SEAL KIT Ref. 2, 3, 5, 6, 8, 17 & 18

28

6671821

O-RING See Illustration CHARGE PUMP/ B17221

29

FLANGE KIT NLA - Was 6681877 - A
