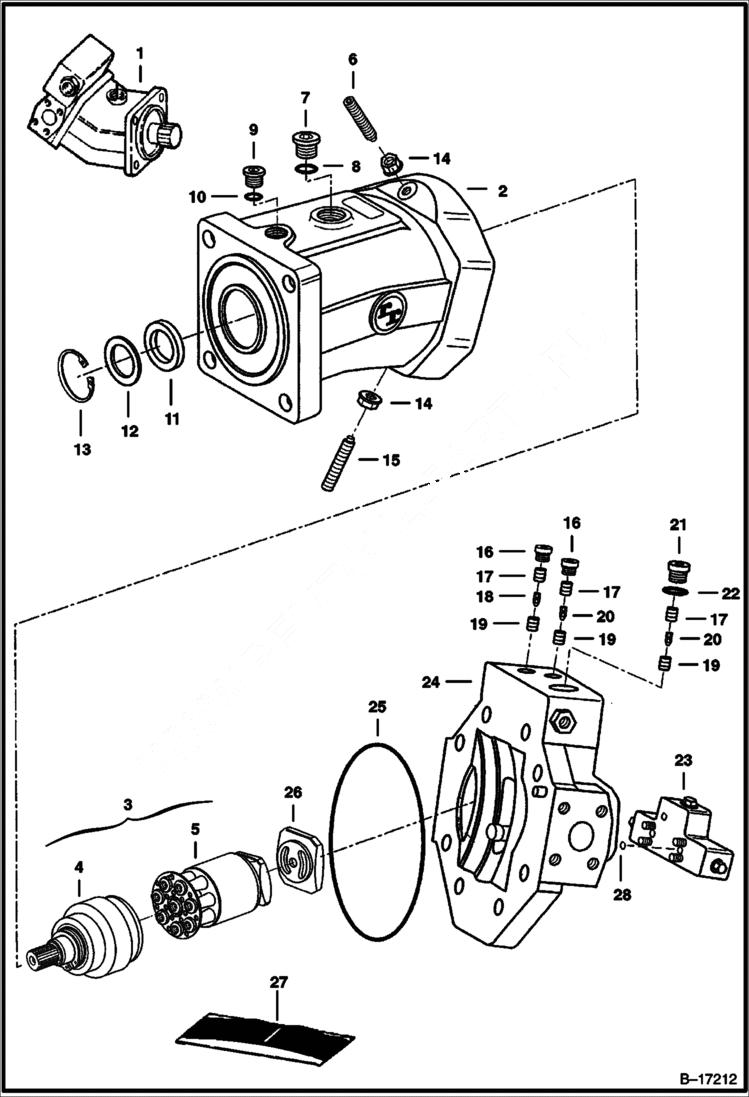

Запчасти Bobcat 900s HYDROSTATIC MOTOR HYDROSTATIC SYSTEM

1

6670817

MOTOR W/Ref. 2 - 26

2

6671842

HOUSING

3

6671830

BLOCK ASSY rotary group

4

6671853

SHAFT

5

6671852

BLOCK rotary group

6

6671838

SCREW

7

6671843

PLUG

8

6671844

O-RING W/Ref. 7

9

6671836

PLUG

10

6671837

O-RING W/Ref. 9

11

6671850

SEAL

12

6671851

SHIM

13

6671849

SNAP RING

14

6671839

NUT

15

6671840

SCREW

16

6671832

PLUG

17

6967789

SCREW throttle - Was 6671833 - A

18

6691476

PIN throttle - Was 6671834 - D

19

6671835

SCREW throttle

20

6671841

SHUTTLE check valve

21

6671845

PLUG

22

6671846

O-RING W/Ref. 21

23

6671848

VALVE See Illustration FLUSHING VALVE/ B17214

24

PORT BLOCK See Illustration REAR COVER ASSY/ B17213 - NLA - Was 6671882 - A

25

6671847

O-RING

26

6671867

LENS CONTROL See Illustration REAR COVER ASSY/ B17213

27

6672018

SEAL KIT See Illustration FLUSHING VALVE/ B17214 See Illustration REAR COVER ASSY/ B17213 W/Ref. 8, 10, 16, 22 & 25 on this page - Ref. 3, 7, 10 & 13 on REAR COVER ASSY page - Ref. 4 & 10 on FLUSHING

28

6671883

O-RING
