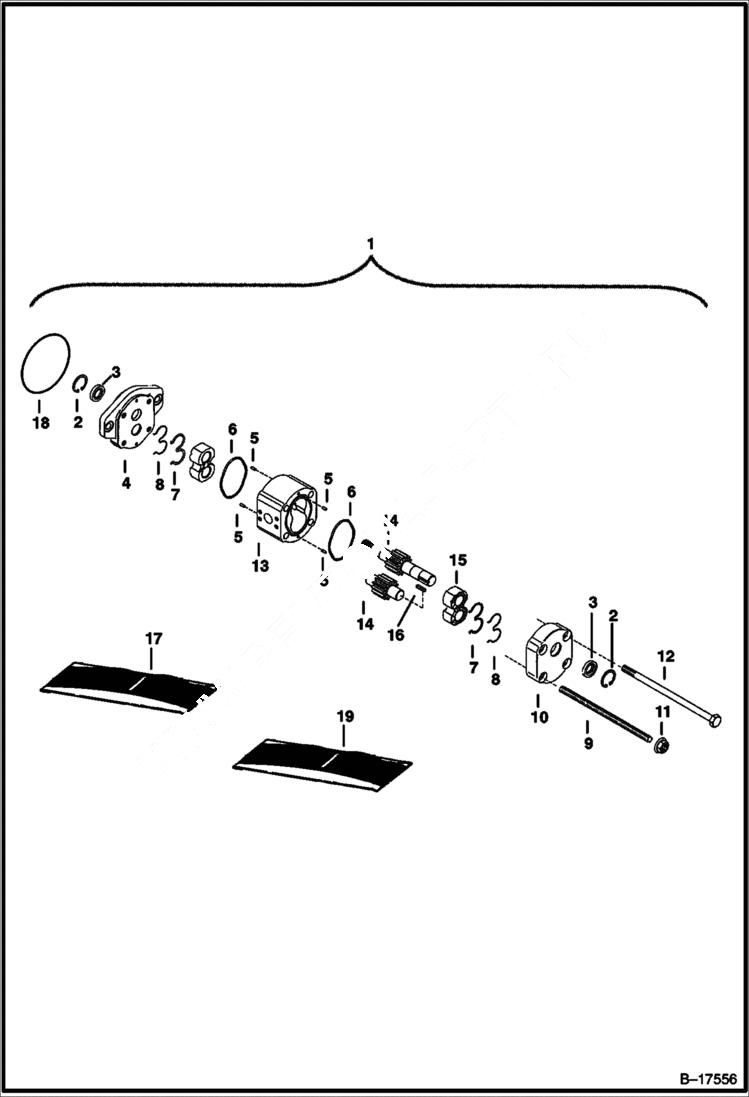

Запчасти Bobcat 900s GEAR PUMP HYDROSTATIC SYSTEM

1

6668882

GEAR PUMP Ref. 2 - 16

2

6672156

SNAP RING

3

6672157

SEAL

4

FLANGE NSS - Was 6672158 - A

5

6662929

DOWEL PIN

6

6672159

O-RING

7

6672160

SEAL

8

6672161

O-RING backup

9

ROD NSS - threaded

10

END COVER NSS

11

6675381

NUT Was 6672164 - A

12

BOLT NLA - Was 6672165 - A

13

BODY NSS

14

GEAR-SET NSS

15

HOLDER NSS

16

6674258

KEY

17

6692643

SEAL KIT W/Ref. 2, 3, 6, 7 & 8 - Was 6672153 - A

18

6671821

O-RING

19

6676484

FLANGE KIT W/Ref. 2 - 5, 9, 11 & 12
