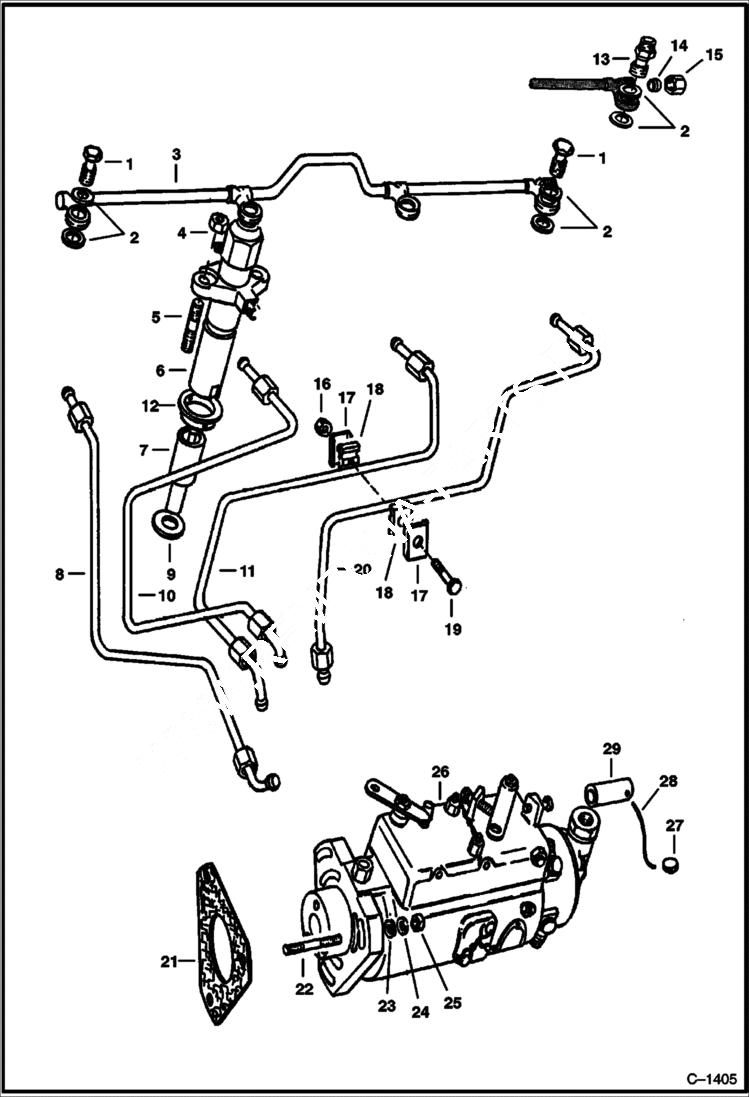

Запчасти Bobcat 900s FUEL INJECTION SYSTEM (Perkins) POWER UNIT

1

3490094

BOLT

2

3490095

WASHER 5

3

3725685

PIPE

3

6630832

PIPE

4

62D5

NUT

5

3725684

STUD

5

3490291

STUD

6

3575084

INJECTOR W/Ref. 7

7

3575085

NOZZLE

8

3725673

PIPE, #1 No. 1 Cylinder

9

3725682

WASHER

10

3725674

PIPE, #2 No. 2 Cylinder

11

3725675

PIPE, #3 No. 3 Cylinder

12

3725683

SHIELD

12

6646778

SHIELD KIT Kit - Was 3737972B - A

13

3725689

BOLT

14

57F3

SLEEVE

15

58F3

NUT

16

1781096

NUT

17

3725678

PLATE

18

3725677

DAMPERS

19

85G1016

SCREW machine

20

6672537

PIPE No. 4 Cylinder - Was 3725676B - A

21

6668020

GASKET Was 3490326B - A

22

6688719

STUD Was 6634205 - A

23

3725700

WASHER

24

4E5

WASHER

25

62D5

NUT

26

3726070

INJ PUMP fuel injection

27

3490324

SEAL sleeve

28

3490325

WIRE seal

29

3490323

SLEEVE throttle
