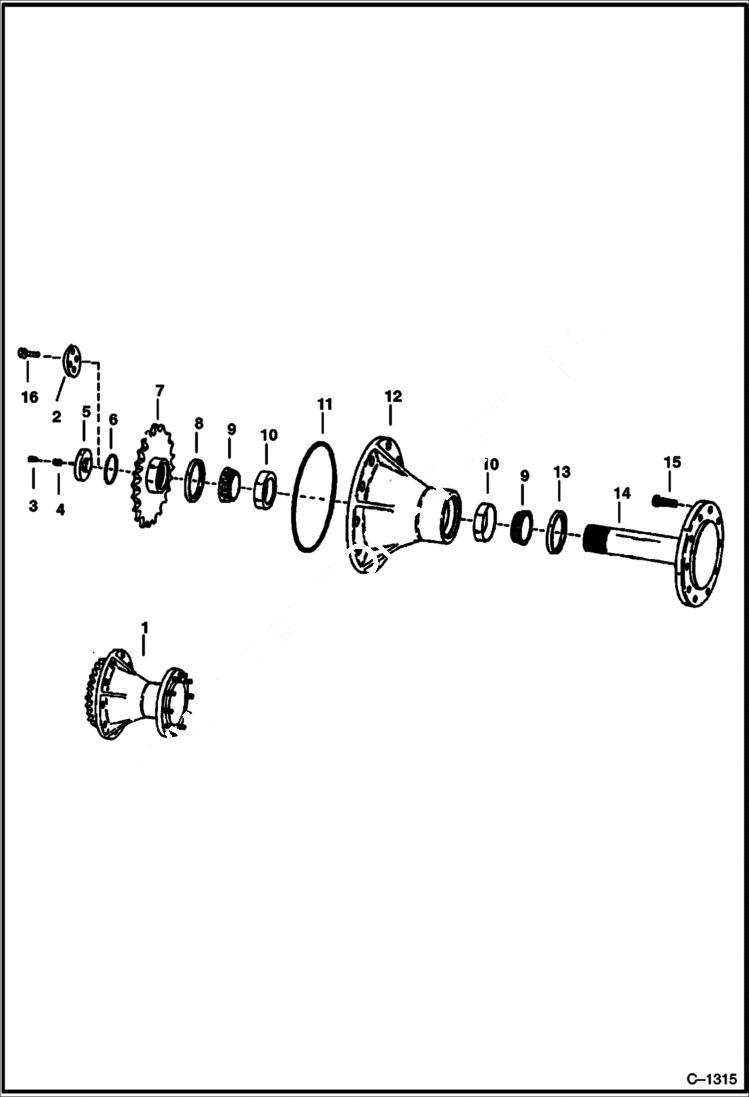

Запчасти Bobcat 900s AXLE & HUB ASSEMBLY DRIVE TRAIN

1

AXLE ASSY. NLA - Ref. 3-15 - Order Components - Was 6590115 - A

2

WASHER NLA - Was 6503882 - A

2

WASHER NLA - Was 6503882 - A

3

19G606

SCREW

3

19G606

SCREW

4

15G606

SCREW

4

15G606

SCREW

5

6506519

RETAINER

5

6506519

RETAINER

6

25K30316

O RING 10

7

6550884

SPROCKET

8

6515893

SEAL

9

7010760

CONE, BEARING bearing - Was 1316482 - B

10

7010761

CUP, BEARING bearing - Was 1316483 - B

11

6558518

O-RING

12

6550748

HOUSING axle

13

6515892

SEAL grease

14

6501664

AXLE W/Ref. 15 - Use W/Ref. 3-5

15

6592304

BOLT wheel

16

18C820

BOLT

16

18C820

BOLT
