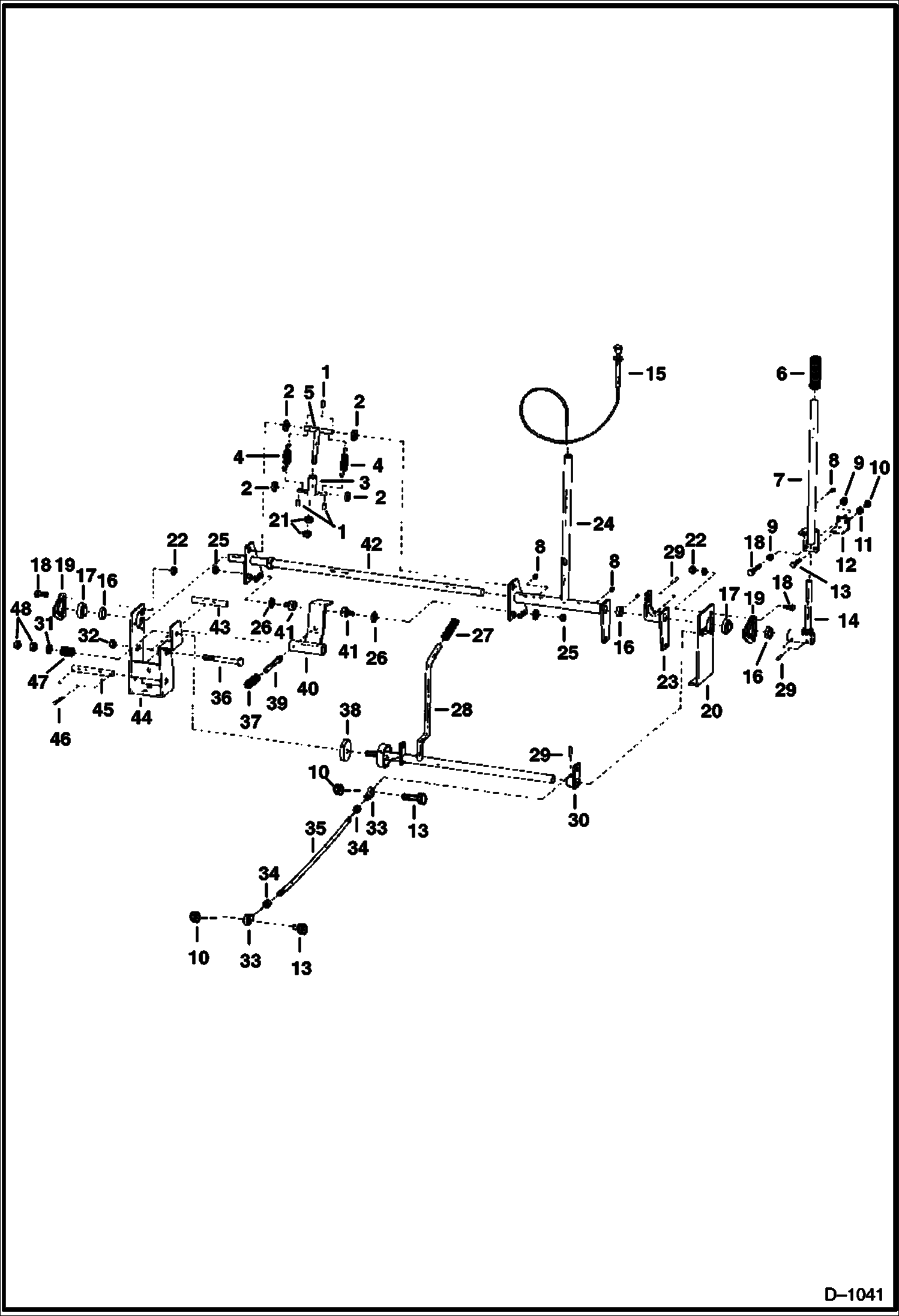

Запчасти Bobcat 900s HAND CONTROLS (Gasoline) HYDROSTATIC SYSTEM

1

1F316

PIN

2

25E18

WASHER

3

6501756

SLIDE

4

6505076

SPRING

5

6501755

ROD

6

6513963

GRIP

7

LEVER NLA - RH - Was 6501697 - A

8

10H35

FITTING, GREASE 10

9

7D5

NUT

10

61D4

NUT 5

11

4E4

WASHER

12

6503987

ANGLE

13

17C412

BOLT 5

14

6591528

LEVER

15

6515602

CABLE choke

16

6515095

COLLAR lock

17

6515103

BALL BEARING

18

17C516

BOLT

19

6515096

FLANGE

20

6501749

BRACKET R.H.

21

7D8

NUT 5

22

81D5

NUT

23

6501786

ARM R.H.

24

HANDLE NLA - W/pivot tube - L.H. - Was 6501699 - A

25

6511994

NUT

26

25E18

WASHER

27

6515109

GRIP

28

6590030

LEVER throttle

29

668312

PIN ROLL

30

6505143

ARM

31

6505623

WASHER

32

81D8

NUT

33

6512954

ROD END adjustable - R.H. threads

34

8D6

NUT 5

35

6503746

ROD

36

17C888

BOLT

37

6505082

SPRING

38

6503388

BLOCK throttle

39

6501779

GUIDE

40

6501753

ARM

41

6515595

FOLLOWER

42

6501696

SHAFT shaft

43

6504007

SPACER

44

6501700

BRACKET L.H.

45

6503744

PIN

46

1F524

PIN

47

6503387

SPRING

48

7D6

NUT
