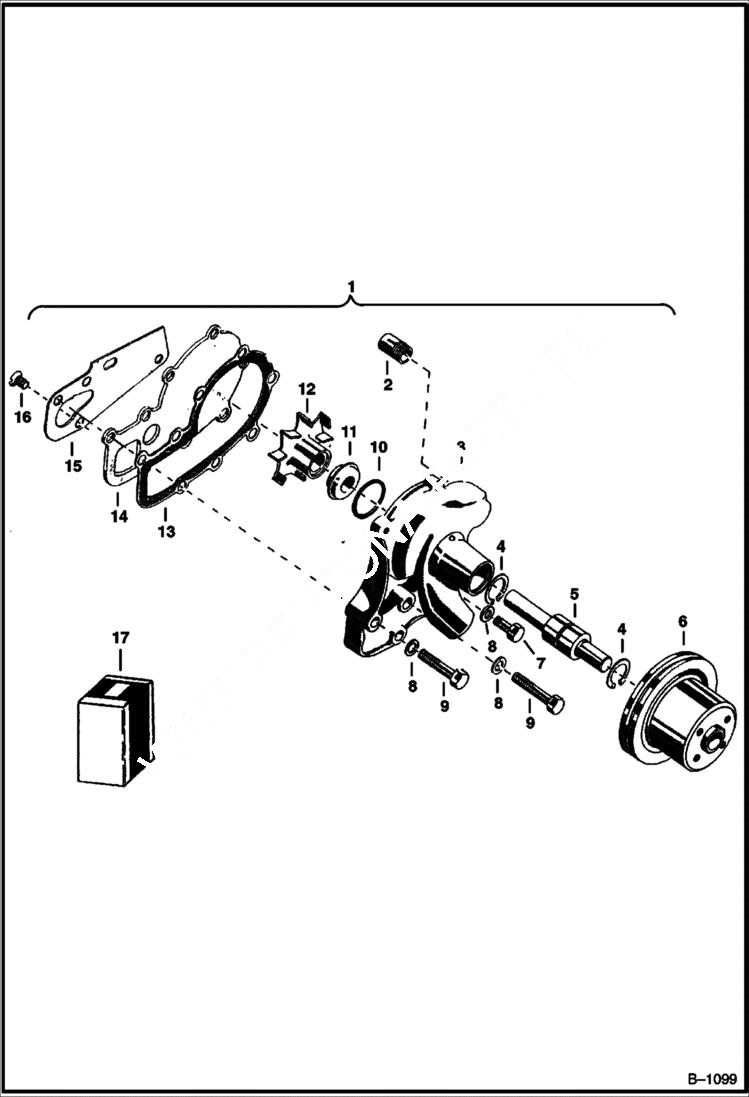

Запчасти Bobcat 900s WATER PUMP (Continental) POWER UNIT

1

998620

PUMP Ref. 3-5 & 10-16 - Was 890702B - A

2

NIPPLE NLA - Was 864279B - A

3

BODY NLA

4

RETAINER NSS

5

SHAFT NSS

6

6518797

PULLEY

7

BOLT NLA - Was 865088B - A

8

4E6

WASHER

9

17C620

BOLT

10

GASKET NSS

11

SEAL NSS

12

IMPELLER NSS

13

GASKET NSS

14

COVER NLA

15

851190

GSKT

16

7G000510B

SCREW NLA - Was 7G000510B - A

17

868619

PUMP KIT Ref. 4, 5, 10-13 & 15
