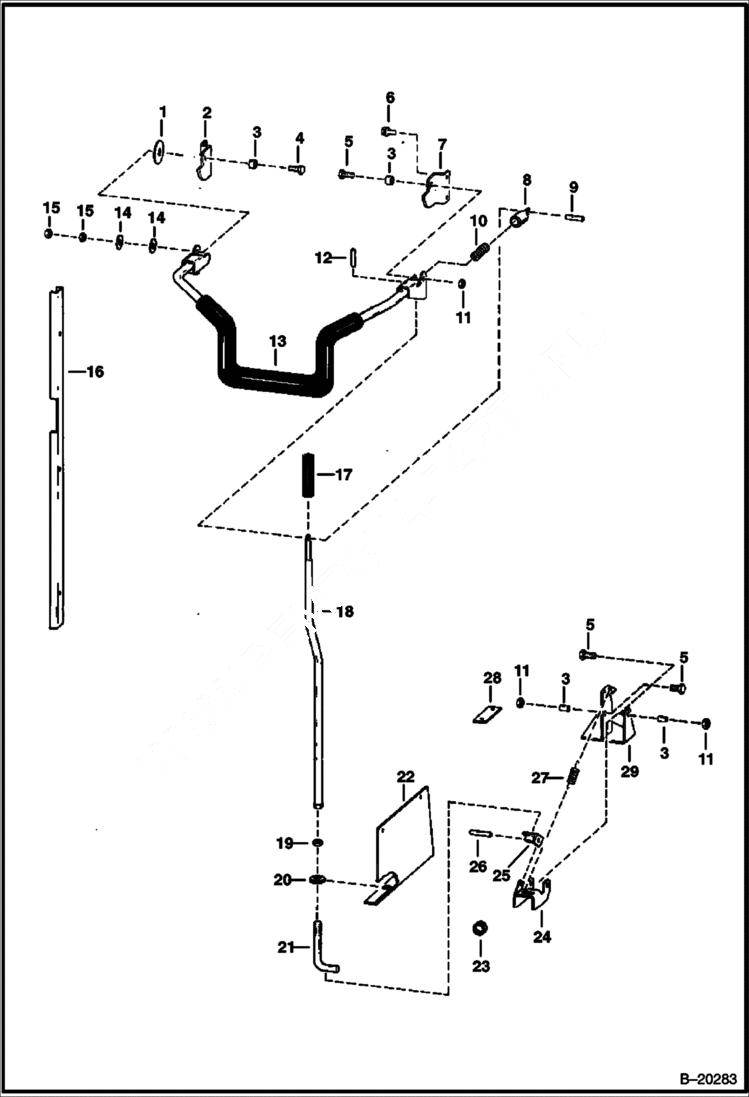

Запчасти Bobcat 900s SEAT BAR (S/N 12881 & Above) MAIN FRAME

1

6562127

WASHER friction

2

6592432

BRACKET mounting - L.H.

3

6544654

BUSHING

4

17C620

BOLT

5

17C616

BOLT 5

6

84G3712

BOLT 5 self-tapping

7

6529773

BRACKET mounting - R.H. - Was 6592433 - A

8

6563200

PIN pin latch

9

668312

PIN ROLL

10

6702430

SPRING, COMPRESSION Was 6563149 - C

11

85D6

NUT, 5

12

14J3716

PIN

13

6592438

SEAT BAR

14

6630038

WASHER spring

15

7D6

NUT

16

6592443

COVER channel

17

HANDLE NLA - Grip - Was 6563477 - A

18

6592434

LINKAGE tube

19

7D8

NUT 5

20

6630043

GROMMET

21

6592436

ROD lockout

22

6592424

PANEL angle

23

6592423

COLLAR locking

24

6592429

BRACKET lockout

25

6563148

BLOCK, SPRING spring

26

14J2516

PIN

27

SPRING NLA - Was 6559219 - A

28

6592437

SPACER bearing

29

6592425

BRACKET pivot
