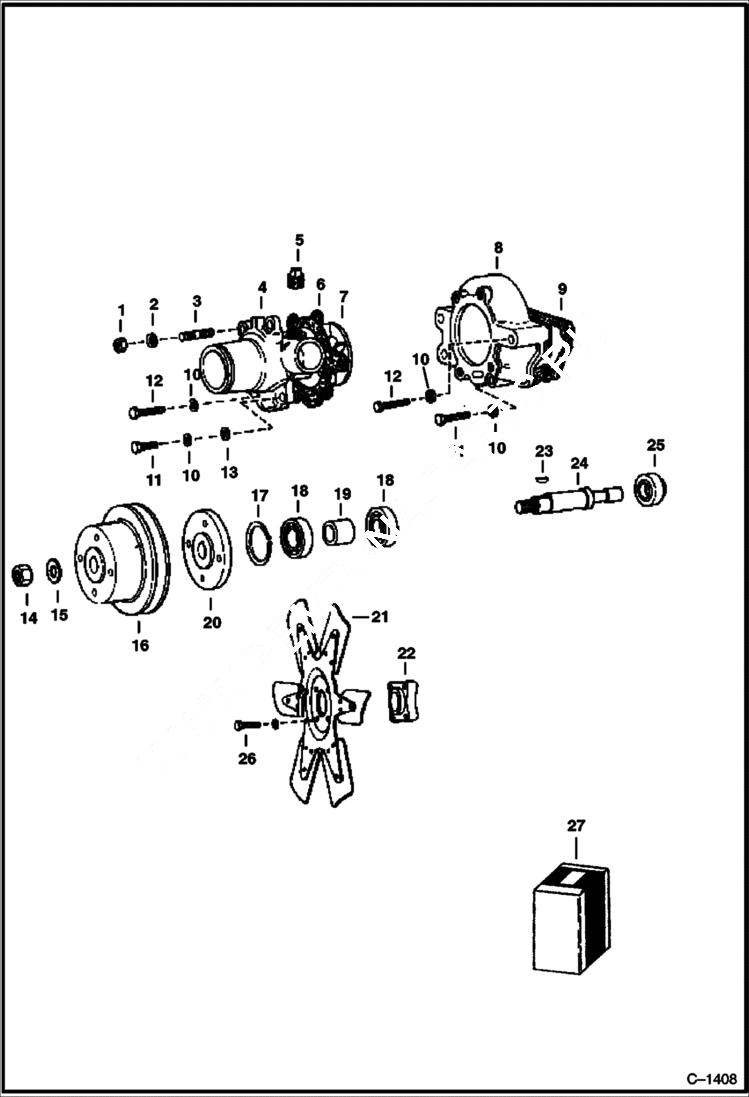

Запчасти Bobcat 900s WATER PUMP POWER UNIT

1

10D5

NUT

2

4E5

WASHER

3

3734229

STUD

4

BODY NLA

5

PLUG NLA - Was 40K000009B - A

6

6668023

GASKET Was 3679408B - A

7

IMPELLER NSS

8

BODY NLA - Order (1) of 6669305 & (4) of 6665716 - Was 906101B - A

9

3575083

GASKET

10

4E6

WASHER

11

18C656

BOLT

12

18C640

BOLT

13

25E19

WASHER

14

62D10

NUT

15

4E10

WASHER

16

PULLEY NLA - Order 3737990B & 6634230

16

3737990

PULLEY

17

SNAP RING NSS

18

BEARING NSS

19

SPACER NSS

20

6634230

HUB Was 3738175B - A

21

6519189

FAN Puller

21

6645244

FAN Pusher - Was 1719160B - A

22

3739064

EXTENSION fan

23

6J505

KEY

24

SHAFT NSS

25

SEAL NSS

26

18C520

BOLT

27

6631516

KIT water pump - W/Ref. 6, 7, 9, 17-19 & 23-25

27

6631515

WATER PUMP W/Ref. 4, 6, 7, 17-19 & 23-25 - Was 995998B - A
