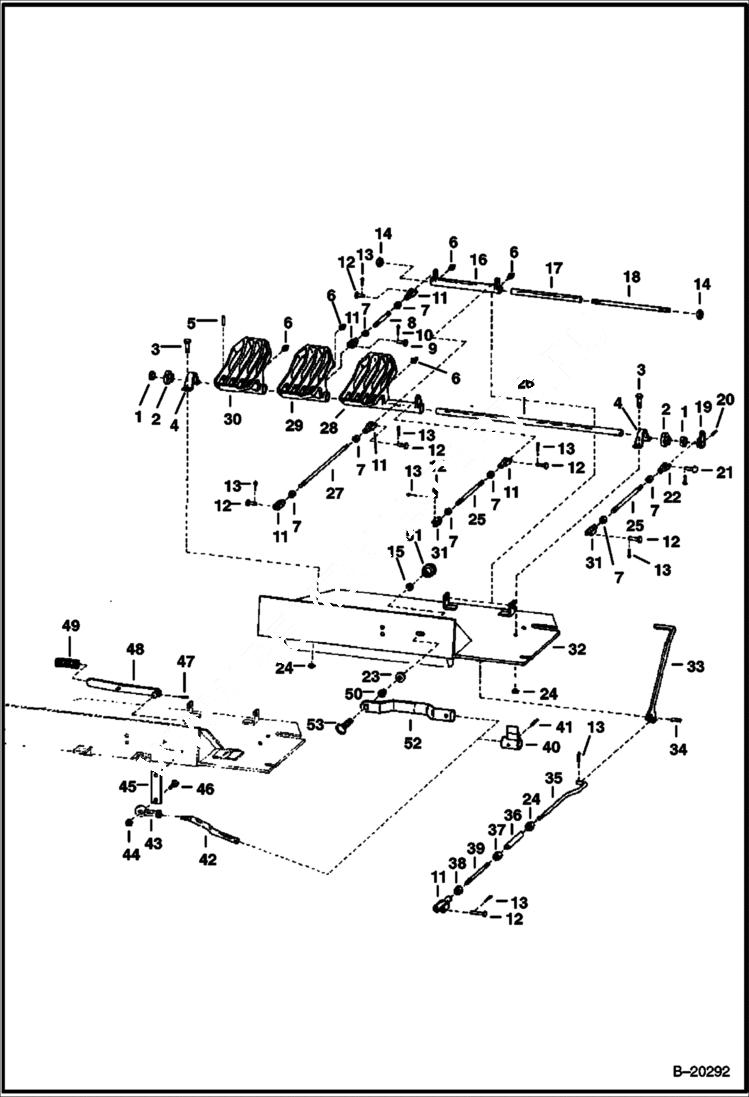

Запчасти Bobcat 900s FOOT PEDAL & CLUTCH LINKAGE HYDRAULIC SYSTEM

1

6515095

COLLAR W/Set Screw

2

6515103

BALL BEARING

3

17C612

BOLT 5

4

BEARING ASSY. NLA - W/Ref. 1 & 2 - Was 6515548 - A

4

6631670

HOUSING

5

ROLL PIN NLA

6

12H25

FITTING

7

8D6

NUT 5

8

6503747

ROD

9

6529777

PIN Was 224391 - A

10

1F316

PIN

11

6508041

YOKE

12

663350

PIN

13

1F416

PIN Was 1F000412B - D

14

81D8

NUT Was 61D000008B - B,D

15

25E21

WASHER 5 Was 4E000008B - B

16

ARM NLA - Was 6591033 - A

17

BUSHING NLA - Order Ref. 16

18

6503692

ROD

19

6503999

ARM

20

672985

PIN

21

17C624

BOLT 5

22

6512954

ROD END R.H. threads -Was 6515481 - A

23

6562127

WASHER Was 4E000006B - A

24

85D6

NUT, 5 Was 61D000006B - B,D

25

6503749

ROD

26

6503995

SHAFT

27

ROD NLA - Was 755206 - A

28

6503998

PEDAL Tilt

29

6593640

PEDAL Auxiliary

30

6503996

PEDAL Lift

31

6560526

CLEVIS

32

6590529

PLATE Was 6560529 - D

32

PLATE NLA - Was 6531535 - A

33

6505118

LEVER clutch

34

656978

PIN

35

6505190

ROD clutch

36

6516336

TURNBUCKLE

37

6504996

NUT

38

62D6

NUT 5

39

6505201

ROD

40

6591077

BLOCK

41

1304227

PIN

42

6504145

ROD

43

6512954

ROD END R.H. threads

44

81D6

NUT

45

6504147

ARM Use W/Ref. 48

46

17C616

BOLT 5

47

1F616

PIN

48

6501827

HANDLE

49

6515109

GRIP Was 515069B - A

50

57D8

NUT 10

51

6649015

KNOB

52

6531343

ROD

53

6529377

BOLT
