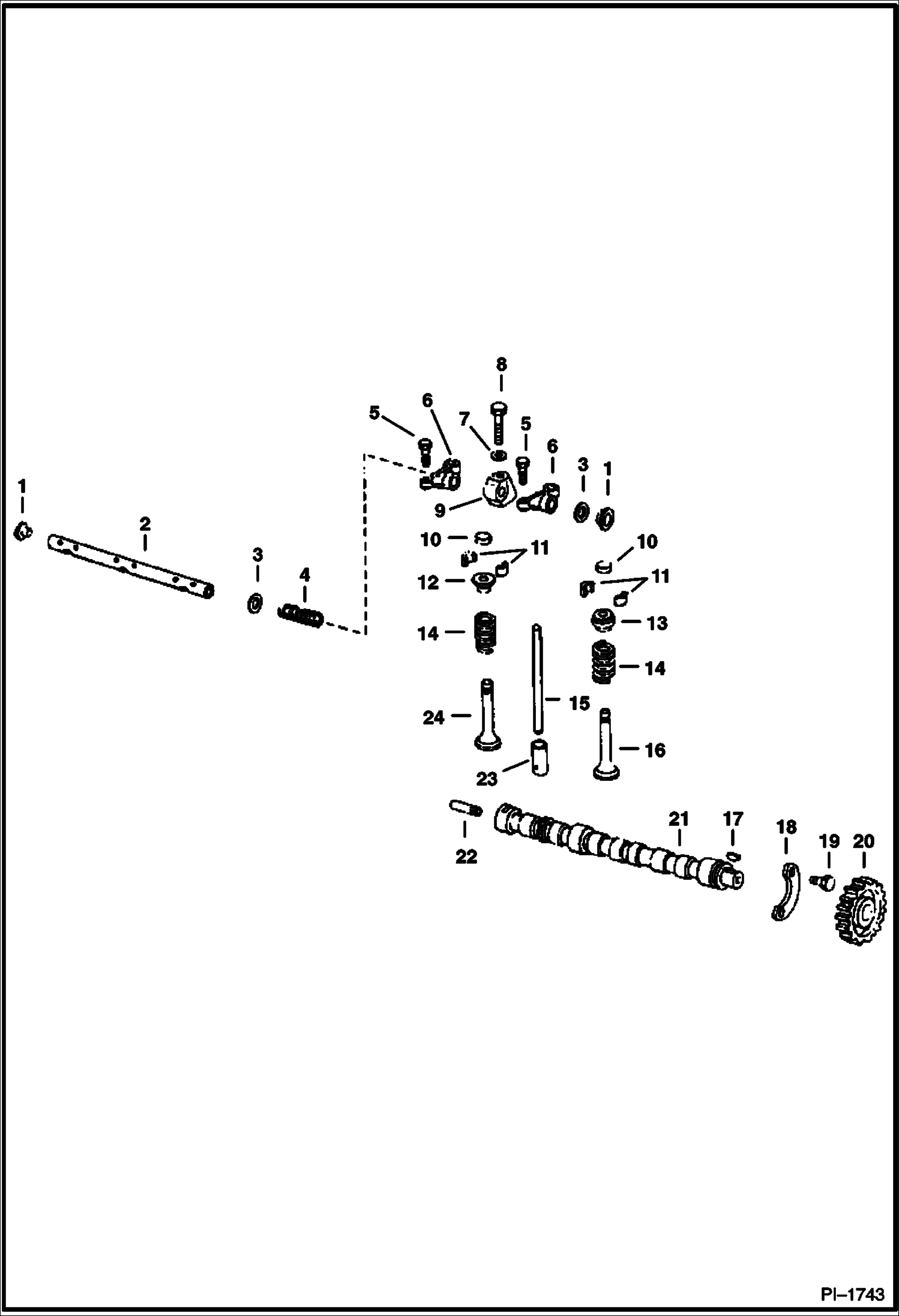

Запчасти Bobcat 900s CAMSHAFT, ROCKER ARMS & VALVE POWER UNIT

1

6511433

PLUG

2

6511434

SHAFT rocker arm

3

6511435

WASHER bowed

4

6511436

SPRING

5

BOLT NSS - valve adjusting - W/Ref. 6

6

6511438

ROCKER ARM W/Adjusting Bolt

7

6511439

WASHER Special

8

17C640

BOLT 5

9

6511440

SUPPORT

10

6511443

CAP valve stem

11

6511444

LOCK retainer

12

6511445

CAP valve

13

ROTATOR NLA - exhaust valve - Was 6511459 - A

14

6511446

SPRING valve

15

6511447

PUSH ROD

16

6511455

VALVE exhaust - Std.

16

997010

VALVE exhaust - .003''

16

997011

VALVE exhaust - .015''

16

997013

VALVE exhaust - .030''

17

6511719

KEY woodruff

18

6511460

THRUST PLATE

19

17C616

BOLT 5

20

6511461

GEAR camshaft

21

CAMSHAFT NLA - W/Ref. 22 - Order 6641310 & 6641309 - Was 6511454 - A

21

6641309

CAMSHAFT Was 6641310 - D

22

6511453

SHAFT tachometer drive

22

6641310

SHAFT tachometer drive - Was 6641309 - D

23

6511452

TAPPET

24

6511448

VALVE intake - Std.

24

997009

VALVE intake - .003''

24

997297

VALVE IN intake - .015''

24

VALVE NLA - intake - .030'' - Was 997012B - A
