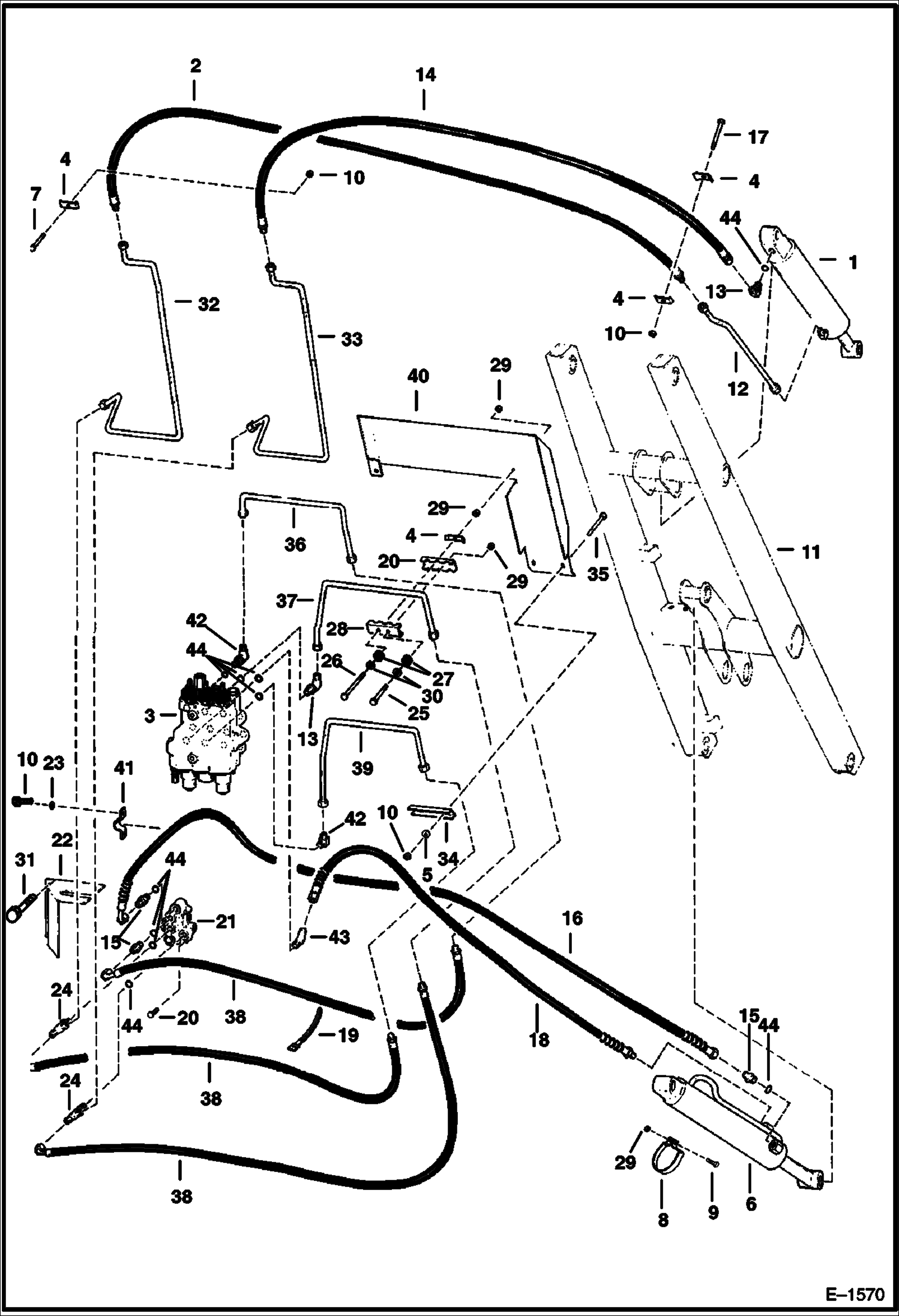

Запчасти Bobcat Articulated Loaders LIFT ARM HYDRAULICS (S/N 12026 & Below) HYDRAULIC SYSTEM

1

6585386

CYLINDER See Illustration TILT CYLINDER/ D1583 TILT

2

6585141

HOSE

3

VALVE See Illustration HYDRAULIC CONTROL VALVE/ E2403 See Illustration VALVE/ B20571

4

6502426

CLAMP

5

25E16

WSHR

6

6584227

CYLINDER See Illustration LIFT CYLINDER/ C2697 LIFT

7

17C628

BOLT

8

6585283

CLAMP

9

17C516

BOLT

10

85D6

NUT, 5

11

6585118

LIFT ARM

12

6585142

TUBE

13

17K7

ELBOW W/Ref. 44

14

6585140

HOSE

15

15K7

FITTING W/Ref. 44

16

6585136

HOSE

17

17C632

BOLT 5

18

6584080

HOSE

19

6624289

STRAP, TIE cable - Was 6583348 - A

20

17C524

BOLT

21

VALVE See Illustration BUCKET POSITION VALVE/ B20572 NLA - bucket positioning - Was 65997776 - A

22

6585308

SHIELD

23

25E18

WASHER

24

21K7

TEE W/Ref. 44

25

17C552

BOLT

26

6585135

BOLT

27

GROMMET NLA - Was 585950 - A

28

6585132

BRACKET

29

85D5

NUT 5

30

25E15

WASHER

31

17C510

BOLT

32

6585143

TUBE

33

6585144

TUBE

34

ANGLE NLA - Was 6585133 - A

35

17C536

BOLT

36

6585147

TUBE

37

6585149

TUBE

38

6585138

HOSE

39

6585148

TUBE

40

6585134

SHIELD

41

6585392

CLAMP

42

6519195

ELBOW W/Ref. 44

43

18K7

FITTING W/Ref. 44

44

79K10

O RING 10
